Diagram # Part Number Description Series Availability Ships Price Add to Cart
32 WP489069 Screw   (Replaces: M0220617) In-Stock Immediately $ 8.40

204 M0753003 Nut, Sleeve Appelez-nous -
313 12041616 Assy, Mc Back Appelez-nous -
323 M0219704 Screw Appelez-nous -
353 12039903 Back, M.c. Appelez-nous -
613 WP489474 Screw   (Replaces: M0220634) In-Stock Immediately $ 8.55

623 C8960601 Foot, Outer Case Appelez-nous -
643 M0108001 Clamp, Tube Appelez-nous -
692 WP489399 Screw, Ca   (Replaces: M0239216) Special Order $ 7.30

803 M0227217 Screw, Sm Appelez-nous -
833 10178405 Cover, O.c.back Appelez-nous -
843 WP489069 Screw   (Replaces: M0220617) In-Stock Immediately $ 8.40

864 A1055105 Spring, Anti Kink Appelez-nous -
1114 681390 Screw   (Replaces: M0251015) Special Order $ 13.71

1134 WPW10247599 Valve, Water (dbl)   (Replaces: 12195504) Special Order $ 229.27

1211 WPB5705307 Tube, Plastic , 68``   (Replaces: B5705321) Special Order $ 13.05

1214 WPB5705307 Tube, Plastic , 68``   (Replaces: B5705321) Special Order $ 13.05

1221 WPM0114003 Clip, Speed   (Replaces: M0114003) Special Order $ 11.60

1242 12072603 Harness, Cabinet Appelez-nous -
1264 WP627018 Nut, Sleeve   (Replaces: M0753001) Special Order $ 11.51

1304 12236001 Plate-water Valve Appelez-nous -
1311 10178505 Cover - Wire Appelez-nous -
1932 B5794201 Clamp Appelez-nous -
1991 WP489069 Screw   (Replaces: M0220617) In-Stock Immediately $ 8.40

1992 WP489069 Screw   (Replaces: M0220617) In-Stock Immediately $ 8.40

2002 10916505 Cord-power Appelez-nous -
2061 A3189336 Gasket, Foam Appelez-nous -
2071 WPM0104106 Clip   (Replaces: M0104106) Special Order $ 8.17

2302 WPB2150504 Drier   (Replaces: B2150504) Special Order $ 136.98

2322 10547002 Clip, Drier Appelez-nous -
2332 M0103904 Clamp, Speed Appelez-nous -
2352 WP489399 Screw, Ca   (Replaces: M0239216) Special Order $ 7.30


    View Diagram in Separate Window     Print Icon   Print Part List

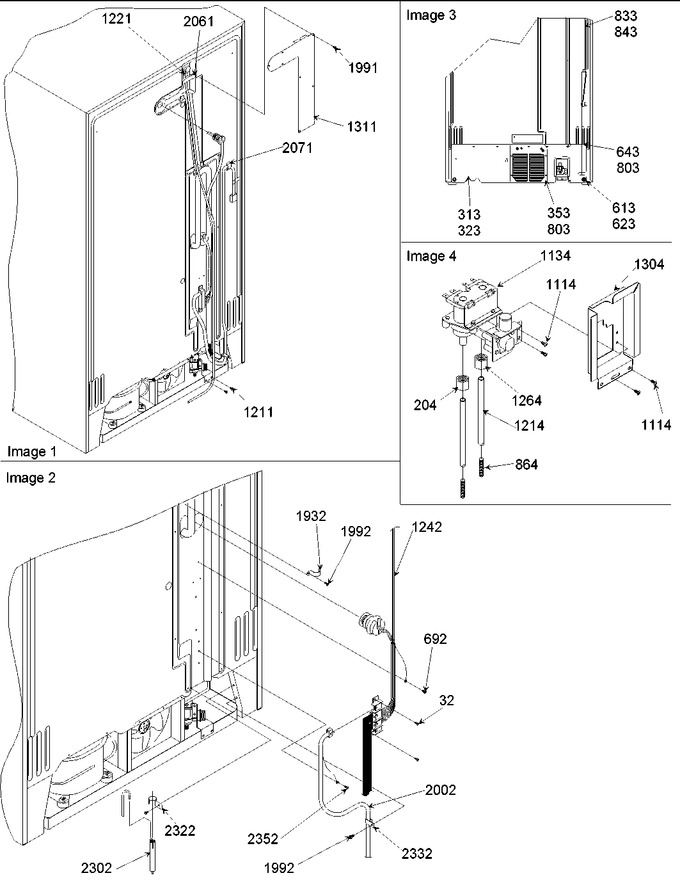

Diagram for ARS236XAW (BOM: PARS236XAW0)
