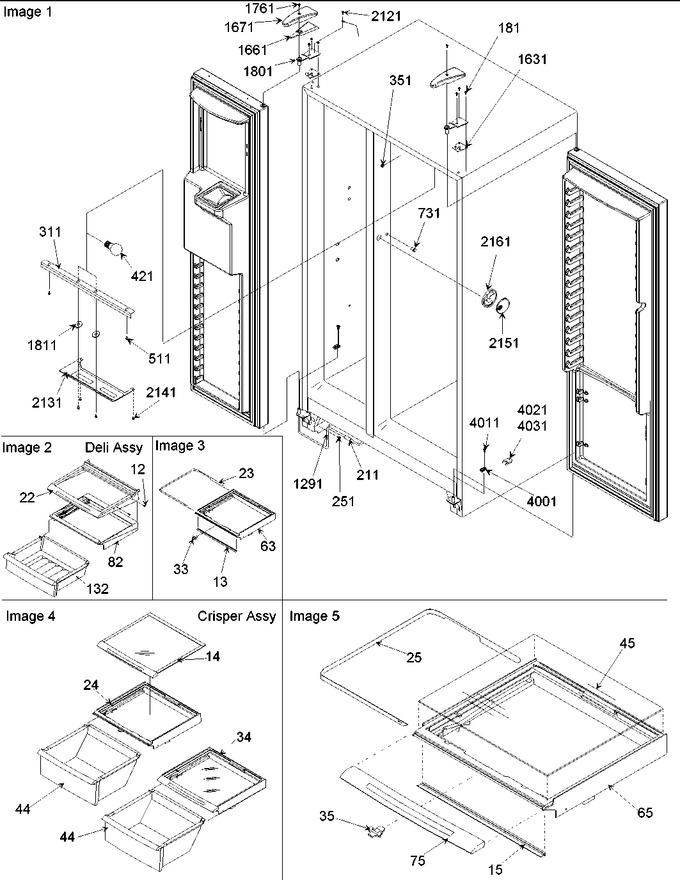

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	M0213129		Screw		Appelez-nous	-
13	10968801		Seal-crisp Front		Appelez-nous	-
14	10783119		Shelf, Top Crisper		Appelez-nous	-
15	10968801		Seal-crisp Front		Appelez-nous	-
22	10809609		Shelf, Stationary		Appelez-nous	-
23	10882701		Band, Crisper		Appelez-nous	-
24	10882815Q		Assy, Crisper Frame		Appelez-nous	-
25	10882701		Band, Crisper		Appelez-nous	-
33	10852501		Slide, Crisper/deli		Appelez-nous	-
34	10882818Q		Assy, Crisp Frame		Appelez-nous	-
35	10852501		Slide, Crisper/deli		Appelez-nous	-
44	10783201A		Pan-crisper		Appelez-nous	-
45	Y10370066		Glass, Shelf		Appelez-nous	-
63	10782901		Frame,crisper		Appelez-nous	-
65	10782901		Frame,crisper		Appelez-nous	-
75	12113008		Trim, Crisper Frt		Appelez-nous	-
82	10783803		Frame, Deli		Appelez-nous	-
132	10784201		Pan, Deli		Appelez-nous	-
181	R9800670		Screw, Tf   (Replaces: M0238731)				$ 9.38
211	WP4373559		Union K   (Replaces: B5706901)				$ 77.35
251	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 7.82
311	10014716		Shield, Light		Appelez-nous	-
351	M0580007		Grommet, Screw		Appelez-nous	-
421	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
511	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 6.95
731	10426801		Clip, Air Tunnel		Appelez-nous	-
1291	W10833902		Clamp, Tube   (Replaces: M0108105)				$ 10.99
1631	12428101		Shim, Top Hinge		Appelez-nous	-
1661	10863501		Foil, Hng Cov		Appelez-nous	-
1761	WP8281196		Screw-mach   (Replaces: M0202327)			Immediately	$ 7.19
1801	12426201		Hinge, Top (e-ct)		Appelez-nous	-
1811	M0270508		Washer		Appelez-nous	-
2121	W11214483		Screw, Mach   (Replaces: M0202321)				$ 14.02
2131	10493302		Cover, Frz Light		Appelez-nous	-
2141	M0238846		Screw-sm		Appelez-nous	-
2151	10164813		Grille, Control		Appelez-nous	-
2161	10164702		Control-air		Appelez-nous	-
4011	WP8281227		Screw, Tc   (Replaces: M0220432)				$ 10.44
