SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Drain, Rollers, And Evap Assy


04 - Facade Dispenser Cover, Elect Brkt Assy


05 - Freezer Door


06 - Freezer Shelves And Lights


07 - Ice Bucket Auger & Ice Maker Parts


08 - Ice Maker/control Assy


09 - Machine Compartment & Muffler Assy


10 - Refrigerator Door Trim


11 - Refrigerator/freezer Lights And Hinges

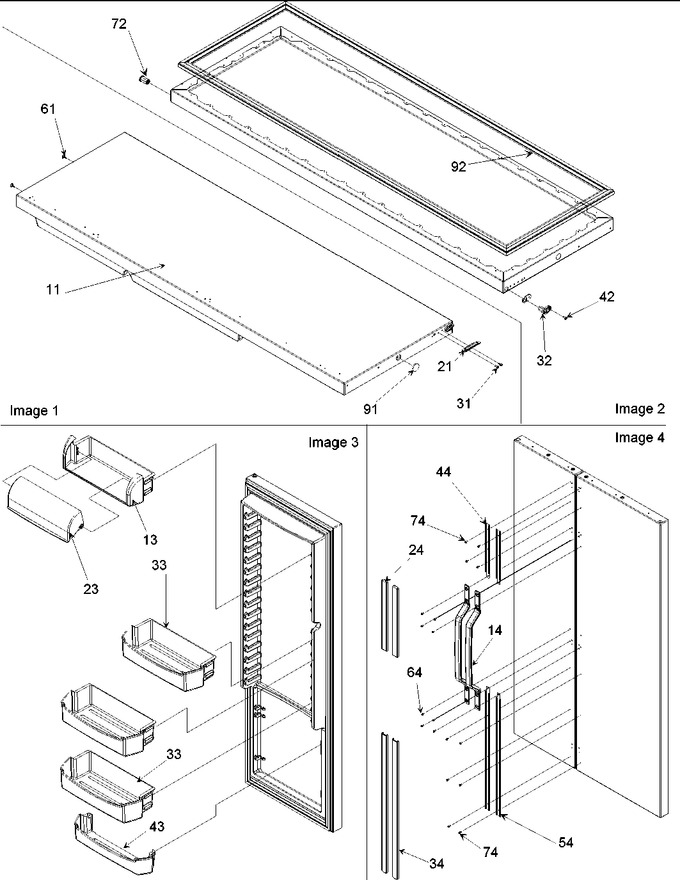

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	12308603		Frame, Dairy				$ 26.46
23	12308701		Door, Dairy		Appelez-nous	-
31	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.00
33	12309509		Bucket, Ref Door		Appelez-nous	-
42	WP8281227		Screw, Tc   (Replaces: M0220432)				$ 10.44
43	12311205		Shelf, Ref Door		Appelez-nous	-
44	12273801		Retainer,top Trim		Appelez-nous	-
54	12273802		Retainer,btm Trim		Appelez-nous	-
64	R9800670		Screw, Mounting   (Replaces: M0223230)				$ 9.38
72	10961001		Bushing, Door (wht)		Appelez-nous	-
74	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.88
91	A3080001		Plug, Button (blk)		Appelez-nous	-
92	R9800046		Assy,ref Dr Gasket(white)		Appelez-nous	-
NI	12310201		Retainer, Ref Bucket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
