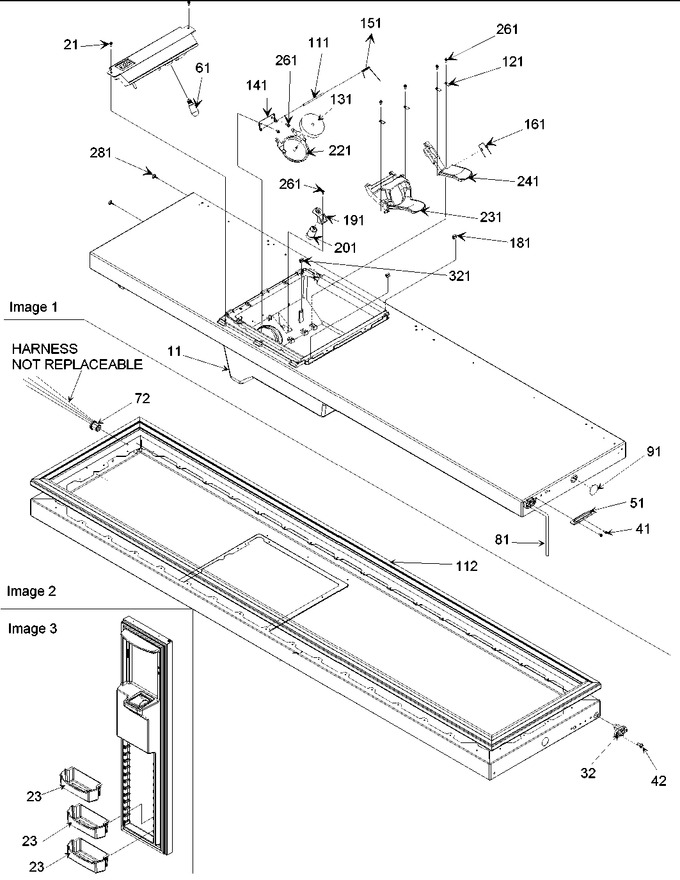

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
21	M0216517		Screw		Appelez-nous	-
23	12311905		Bucket, Frz Door		Appelez-nous	-
41	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
42	WP8281227		Screw, Tc   (Replaces: M0220432)				$ 10.96
61	W10857122		Light Bulb   (Replaces: M0360001)				$ 14.52
72	WP67004977		Bushing, Top   (Replaces: C8964401)				$ 8.20
81	WPB5705307		Tubing, Plastic   (Replaces: B5705326)				$ 13.05
91	A3080001		Plug, Button (blk)		Appelez-nous	-
111	A1061501		Pin, Chute Door		Appelez-nous	-
112	R9800047		Assy,fz Dr Gasket(white)		Appelez-nous	-
121	A1061601		Retainer, Ice Arm		Appelez-nous	-
131	B8380701		Insulation, Chute Door		Appelez-nous	-
141	B8380802		Brkt-chute Door		Appelez-nous	-
151	B8380901		Spring,chute Door				$ 7.18
161	B8385401		Spring, Return		Appelez-nous	-
181	W10819546		Clip, Facade   (Replaces: B8390302)				$ 13.14
191	C8972501		Retainer Door Delay		Appelez-nous	-
201	C8973602		Delay, Door				$ 49.84
221	R0156692		Kit,chute Dr No.3		Appelez-nous	-
261	M0211116		Screw, Sm		Appelez-nous	-
321	12454802		Clip, Waterline		Appelez-nous	-
NI	12310203		Retainer, Frz Bucket		Appelez-nous	-
