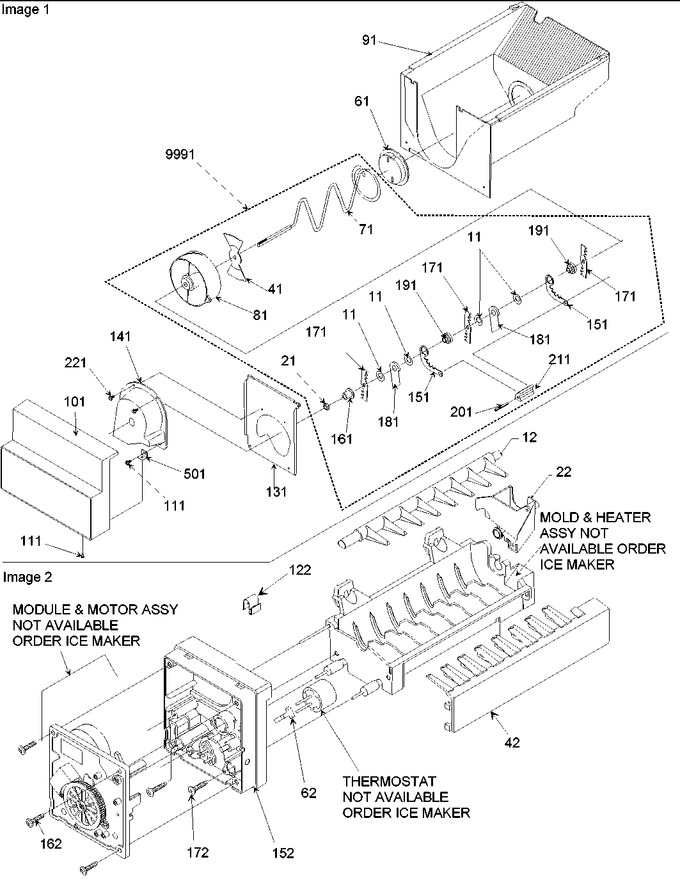

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 10275101 | Washer, Waved |
|
- | |||||
| 12 | WP627843 | Ejector (Replaces: R0183119) |
|
$ 83.60 | |||||
| 21 | WPM0223101 | Nut, Locking (Replaces: M0223101) |
|
$ 7.68 | |||||
| 22 | WP628356 | Cup, Water Fill/bearing (Replaces: R0156839) |
|
$ 51.19 | |||||
| 41 | 10113801 | Bar, Crsh Ice Bucket |
|
$ 4.96 | |||||
| 42 | WP2182124 | Stripper, Ice (Replaces: R0183120) |
|
$ 86.05 | |||||
| 61 | WPD7749401 | Cap, Helix End (Replaces: D7749401) |
|
$ 27.63 | |||||
| 62 | WP2315522 | Retainer (Replaces: R0191094) |
|
$ 11.05 | |||||
| 71 | 10114401 | Agitator, Ice |
|
$ 107.74 | |||||
| 81 | 10114703 | Wheel, Crsh Ice |
|
- | |||||
| 91 | 10111905V | Bucket-crsh Ice |
|
- | |||||
| 101 | 10870904V | Front-ci Bucket |
|
- | |||||
| 111 | 67006425 | Screw, Sm (Replaces: M0238642) |
|
Immediately | $ 6.95 | ||||
| 122 | WP628379 | Clip, Thermal Fuse (Replaces: 10319801) |
|
$ 10.57 | |||||
| 131 | 10115001 | Front, Ice Crusher |
|
$ 25.55 | |||||
| 141 | 10114004 | Cover, Blade |
|
- | |||||
| 151 | 10114601 | Blade, Static |
|
- | |||||
| 152 | WP2195914 | Support (Replaces: R0183121) |
|
$ 104.57 | |||||
| 161 | 10113901 | Spacer, Cover |
|
- | |||||
| 162 | R0186041 | Screw |
|
- | |||||
| 171 | 10114501 | Blade, Rotating |
|
- | |||||
| 172 | R0186040 | Screw |
|
- | |||||
| 181 | 10275201 | Damper, Ice |
|
- | |||||
| 191 | 10114301 | Washer Stepped |
|
- | |||||
| 201 | M1200108 | Pin, Roll |
|
- | |||||
| 211 | 10114101 | Anchor, Blade |
|
- | |||||
| 221 | M0231704 | Screw, Tf |
|
- | |||||
| 501 | 10894901 | Brkt, Cover Mtg. |
|
- | |||||
| 9991 | WP12740302 | Crushed Ice Agitator Assy (Replaces: R0156803) |
|
$ 504.36 | |||||
| NI | 10834701 | Label, Im |
|
- |
