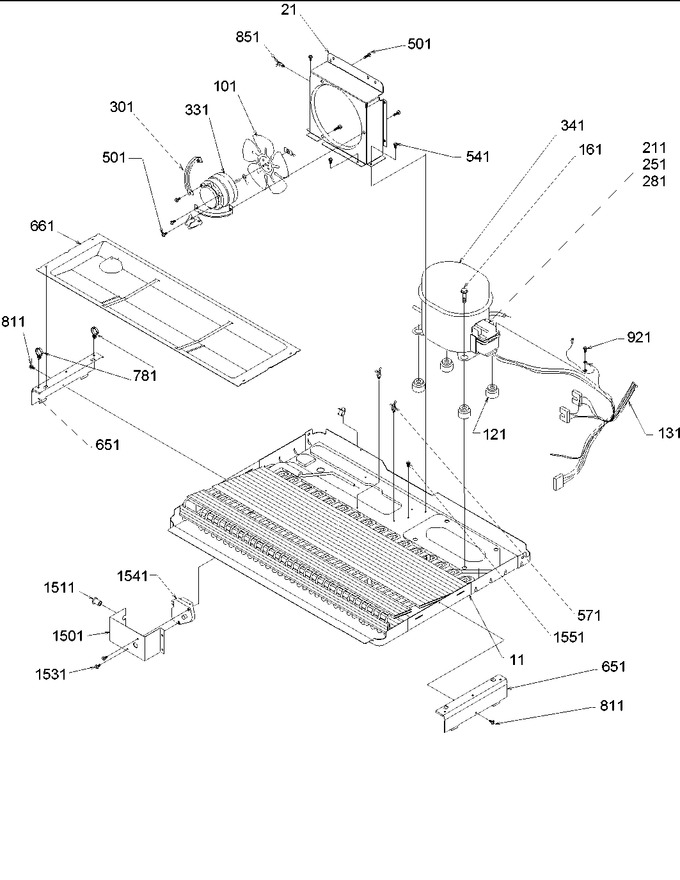

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10544110		Assy,cond/pan-e Ct		Appelez-nous	-
21	10602408		Kit,shroud/brkt Sound		Appelez-nous	-
101	10518702		Blade, Fan		Appelez-nous	-
121	WPW10169124		Grommet, Compressor   (Replaces: 10835901)			Immediately	$ 7.19
131	10967602		Harness, M.c.		Appelez-nous	-
161	M0221523		Screw, Shldr		Appelez-nous	-
211	WP10377023		Overload, 4tm   (Replaces: 10377023)				$ 126.38
251	WP10097202		Ptc Relay   (Replaces: 10097202)				$ 118.98
281	10757301		Cover, Terminal		Appelez-nous	-
301	10496501		Kit,shroud/brkt Sound		Appelez-nous	-
331	833697		Motor, Fan   (Replaces: 10884501)			Immediately	$ 88.15
341	W10160407		Kit,compressor-tpb1390yxa   (Replaces: 12049712)				$ 599.92
501	M0223816		Screw, Tr				$ 5.27
541	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.82
571	DC61-40081A		Tie, Wire   (Replaces: M0585401)				$ 0.94
651	10495702		Brkt, Drain Pan Mtg.		Appelez-nous	-
661	10507903		Pan, Drain		Appelez-nous	-
781	M0322202		Tie Wire		Appelez-nous	-
811	A4539601		Pop Rivet		Appelez-nous	-
851	M0585403		Tie Wire		Appelez-nous	-
921	12992301		Screw, Tf   (Replaces: M0231604)				$ 7.32
1501	10877004		Bracket, Timer		Appelez-nous	-
1511	A3293505		Bushing-snap		Appelez-nous	-
1531	M0216705		Screw				$ 5.81
1541	R0131577		Timer, Defrost (8 Hr)   (Replaces: 10530703)			Immediately	$ 51.24
1551	WP489399		Screw   (Replaces: M0232903)				$ 6.95
