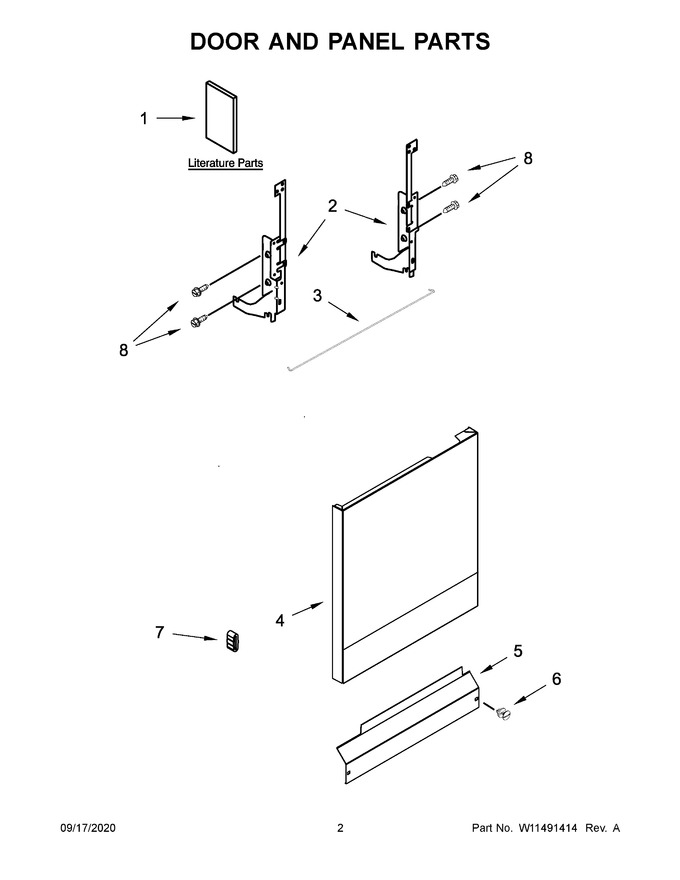

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11431977		Energy Guide		Appelez-nous	-
2	W11806566		Arm, Hinge (left Hand)   (Replaces: W10274922)			Immediately	$ 66.52
3	W10850371		Stiffener, Door   (Replaces: W10803537)			Immediately	$ 31.31
4	WPW10274895		Panel Front (black)   (Replaces: W10274895)				$ 369.82
5	W11763736		Access Panel (black)   (Replaces: W10441006)			Immediately	$ 38.79
6	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 30.39
7	WP8268961		Sleeve, Friction   (Replaces: 8268961)			Immediately	$ 5.93
8	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.00
1A	W11384187		Owners Manual		Appelez-nous	-
1B	W11266092		Tech Sheet		Appelez-nous	-
2A	W11613572		Arm, Hinge (right Hand)   (Replaces: W10274921)			Immediately	$ 78.37
4A	WPW10274896		Panel Front (white)   (Replaces: W10274896)				$ 345.25
4B	WPW10274902		Panel Front (stainless)   (Replaces: W10274902)			Immediately	$ 374.34
5A	WPW10441007		Access Panel (white)   (Replaces: W10441007)				$ 162.80
6A	WPW10503549		Fastener (white)   (Replaces: W10503549)			Immediately	$ 7.77
