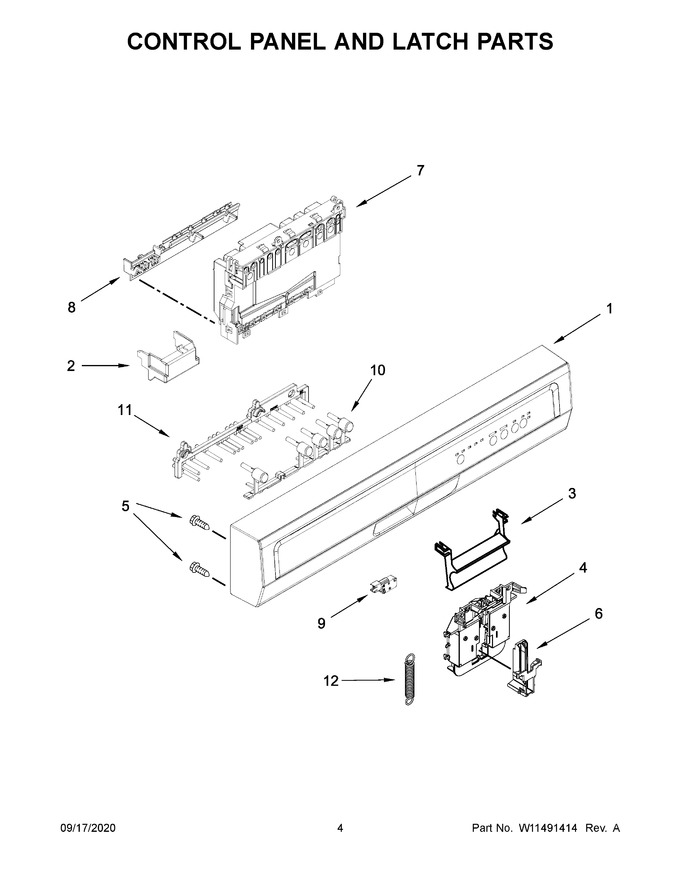

03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11243318		Console Assembly (includes Insert And Vent Gasket) (black)   (Replaces: W10840114)				$ 233.71
2	W11305293		Box, Connector   (Replaces: W10825638)			Immediately	$ 236.98
3	W11684608		Handle, Latch (black)   (Replaces: W10716685)				$ 8.59
4	WPW10274884		Bolt, Latch   (Replaces: W10274884)			Immediately	$ 86.34
5	WPW10348409		Screw   (Replaces: W10348409)			Immediately	$ 8.20
6	WP8524471		Actuator, Latch   (Replaces: 8524471)			Immediately	$ 101.28
7	W10906422		Control, Electronic   (Replaces: W10834731)			Immediately	$ 314.94
8	W11305293		Brace, Connector   (Replaces: W10825369)			Immediately	$ 236.98
9	WPW10274880		Switch, Door   (Replaces: W10274880)			Immediately	$ 82.89
10	W10854044		Button Tree   (Replaces: W10350294)				$ 19.58
11	W10913666		Light Pipe   (Replaces: W10350295)				$ 13.70
12	W10678341		Spring, Latch				$ 19.59
1A	W10827956		Console Assembly (includes Insert And Vent Gasket) (white)   (Replaces: W10840125)				$ 377.51
3A	W10716686		Handle, Latch (white)				$ 31.99
