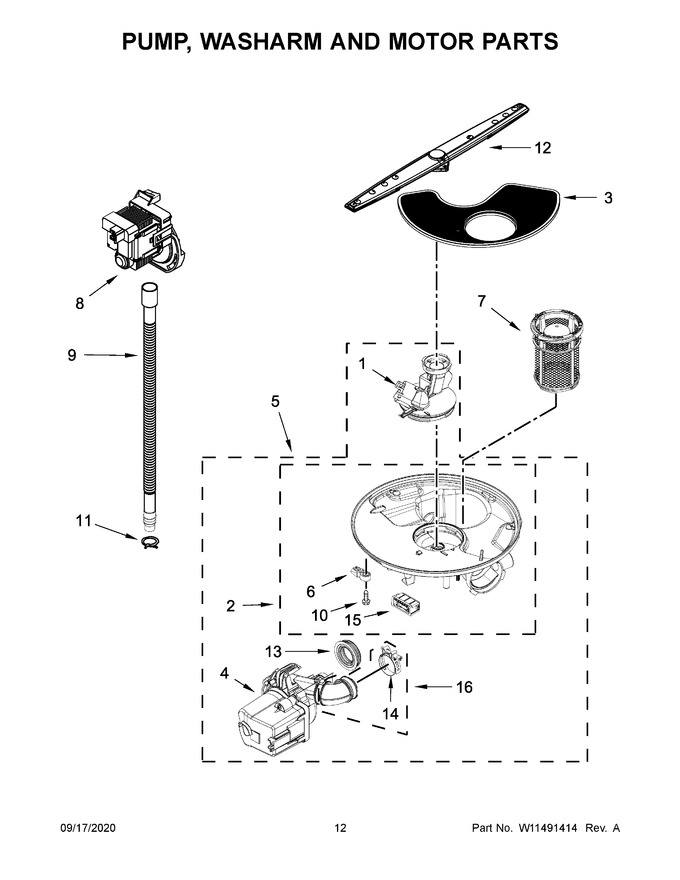

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10455271		Cover, Outlet   (Replaces: W10455271)			Immediately	$ 20.09
2	W10482461		Sump Assembly (also Order Items 13 & 16)				$ 274.39
3	WPW10463906		Screen   (Replaces: W10463906)			Immediately	$ 36.35
4	W11612326		Motor (also Order Items 13 & 16)   (Replaces: W10805386)			Immediately	$ 114.29
5	W10888591		Sump & Motor Assembly   (Replaces: W10837402)			Immediately	$ 480.40
6	WPW10372113		Tab, Sump   (Replaces: W10372113)			Immediately	$ 27.96
7	W10872845		Filter Cup Assembly   (Replaces: W10789806)			Immediately	$ 55.08
8	W10876537		Pump, Drain   (Replaces: W10724439)			Immediately	$ 79.92
9	8269144A		Hose, Drain   (Replaces: 8269144)			Immediately	$ 27.66
10	WPW10348407		Screw   (Replaces: W10348407)				$ 7.69
11	WP285655		Clamp, Hose   (Replaces: 370445)			Immediately	$ 8.39
12	WPW10491331		Sprayarm   (Replaces: W10491331)			Immediately	$ 55.64
13	WPW10538166		Grommet   (Replaces: W11182008)			Immediately	$ 40.83
14	W10789434		Clamp, Hose   (Replaces: W10169167)			Immediately	$ 14.40
15	W11243394		Motor, Isolator   (Replaces: W10195086)				$ 13.88
16	W10445975		Hose Assembly (includes 2 Clamps)			Immediately	$ 85.38

    View Diagram in Separate Window       Print Part List
