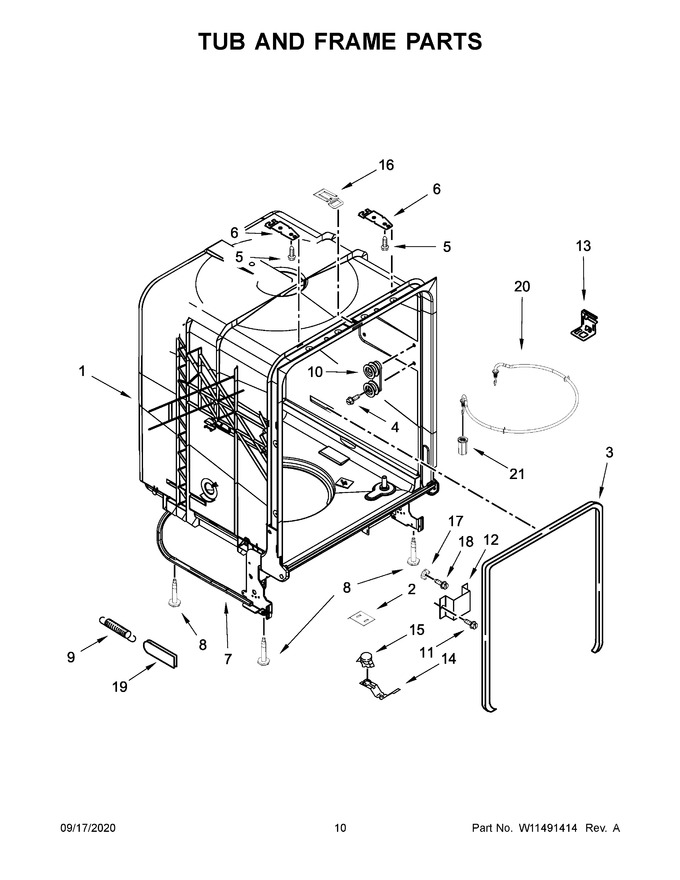

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11513977 | Tub Assembly (includes Heater Assembly) (Replaces: W10349289) |
|
$ 626.55 | |||||
| 2 | W10321574 | Shield, Thermostat |
|
$ 24.60 | |||||
| 3 | W11768590 | Seal, Tub (Replaces: W10524469) |
|
Immediately | $ 31.19 | ||||
| 4 | W10817436 | Screw (Replaces: W10341745) |
|
Immediately | $ 7.74 | ||||
| 5 | WP308685 | Screw (Replaces: 3367670) |
|
Immediately | $ 7.87 | ||||
| 6 | WP8269145 | Bracket, Undercounter (Replaces: 8269145) |
|
Immediately | $ 19.33 | ||||
| 7 | W11680335 | Support, Bottom (Replaces: W10304231) |
|
$ 80.31 | |||||
| 8 | 8193716 | Leveler, Leg (Replaces: W10619352) |
|
Immediately | $ 84.72 | ||||
| 9 | WPW10337934 | Spring, Door Balance (Replaces: W10337934) |
|
Immediately | $ 34.61 | ||||
| 10 | WP8575897 | Wheel Assembly (Replaces: 8575897) |
|
Immediately | $ 9.70 | ||||
| 11 | WP3400892 | Screw (Replaces: 3400892) |
|
$ 7.75 | |||||
| 12 | W11779375 | Cover, Terminal Box (Replaces: 8268991) |
|
$ 26.79 | |||||
| 13 | W11027055 | Bracket, Heater Support (Replaces: W10732961) |
|
$ 34.13 | |||||
| 14 | W10539489 | Clip, Thermostat |
|
$ 19.18 | |||||
| 15 | WP661566 | Thermostat (Replaces: 3371618) |
|
Immediately | $ 31.28 | ||||
| 16 | WP8580309 | Strike, Latch (Replaces: 8580309) |
|
Immediately | $ 44.69 | ||||
| 17 | WP3378128 | Washer, Pronged Cup (Replaces: 3378128) |
|
$ 9.03 | |||||
| 18 | WPW10277003 | Screw (Replaces: W10277003) |
|
$ 7.19 | |||||
| 19 | WP8268990 | Bushing, Door Spring (Replaces: 8268990) |
|
Immediately | $ 30.52 | ||||
| 20 | W10518394 | Heater Element Assembly (includes Heater Washer & Nut) (Replaces: W10441445) |
|
Immediately | $ 52.43 | ||||
| 21 | WPW10477552 | Nut, Heater Element (Replaces: W10477552) |
|
Immediately | $ 7.76 |
