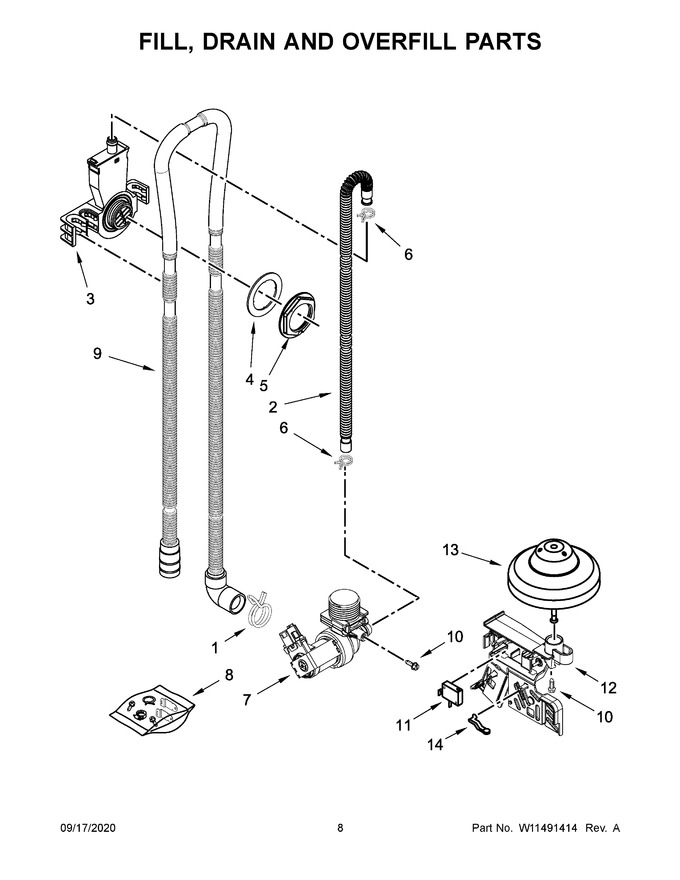

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP285655		Clamp, Hose   (Replaces: 370445)			Immediately	$ 8.39
2	W10878507		Inlet Hose   (Replaces: W10769066)			Immediately	$ 77.06
3	WPW10195536		Inlet, Water (also Order Item 4)   (Replaces: W10195536)			Immediately	$ 86.31
4	WP8531323		Gasket   (Replaces: 8531323)			Immediately	$ 39.11
5	WPW10508676		Nut, Inlet (also Order Item 4)   (Replaces: W10508676)				$ 18.43
6	WP596669		Clamp, Hose   (Replaces: 371505)			Immediately	$ 8.40
7	W11175771		Fill Valve Assembly   (Replaces: W11130744)			Immediately	$ 73.69
8	WPW10292152		Miscellaneous Parts Bag (contains 2 Screws, 2 Clamps, & 2 Brackets)   (Replaces: W10292152)			Immediately	$ 43.90
9	WPW10545278		Drain Loop With Check Valve Assembly   (Replaces: W10545278)			Immediately	$ 74.41
10	WP304231		Screw   (Replaces: 304231)			Immediately	$ 7.75
11	WPW10195039		Switch, Overfill Control   (Replaces: W10195039)			Immediately	$ 73.73
12	WPW10316267		Standpipe, Overfill   (Replaces: W10316267)				$ 30.38
13	W11814886		Float & Retainer Assembly   (Replaces: W10346525)			Immediately	$ 75.38
14	WPW10195037		Lever, Overfill Switch   (Replaces: W10195037)			Immediately	$ 11.18
