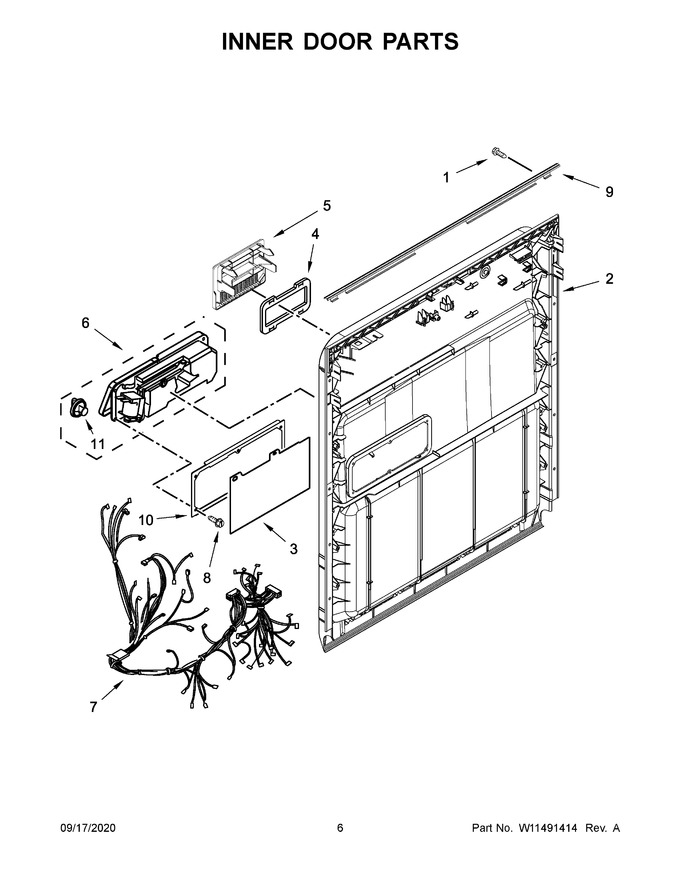

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10348409 | Screw (Replaces: W10348409) |
|
Immediately | $ 8.20 | ||||
| 2 | W11612333 | Inner Door (also Order Item 4) (Replaces: W10274908) |
|
Immediately | $ 306.79 | ||||
| 3 | WPW10482094 | Cover, Dispenser (Replaces: W10482094) |
|
Immediately | $ 32.36 | ||||
| 4 | WPW10254545 | Gasket, Vent (Replaces: W10254545) |
|
$ 12.19 | |||||
| 5 | W10919772 | Deflector, Vent (also Order Item 4) |
|
$ 69.35 | |||||
| 6 | W11820247 | Dispenser, Assembly (Replaces: W10428217) |
|
Immediately | $ 127.67 | ||||
| 7 | W11677713 | Wiring Harness (Replaces: W10832778) |
|
$ 277.04 | |||||
| 8 | WPW10177098 | Screw (Replaces: W10177098) |
|
Immediately | $ 8.02 | ||||
| 9 | WP8269296 | Seal, Door/console (Replaces: 8269296) |
|
Immediately | $ 188.17 | ||||
| 10 | WPW10462232 | Bracket, Dispenser (Replaces: W10462232) |
|
$ 37.79 | |||||
| 11 | WPW10524922 | Cap, Rinse Aid (Replaces: W10524922) |
|
$ 49.58 |
