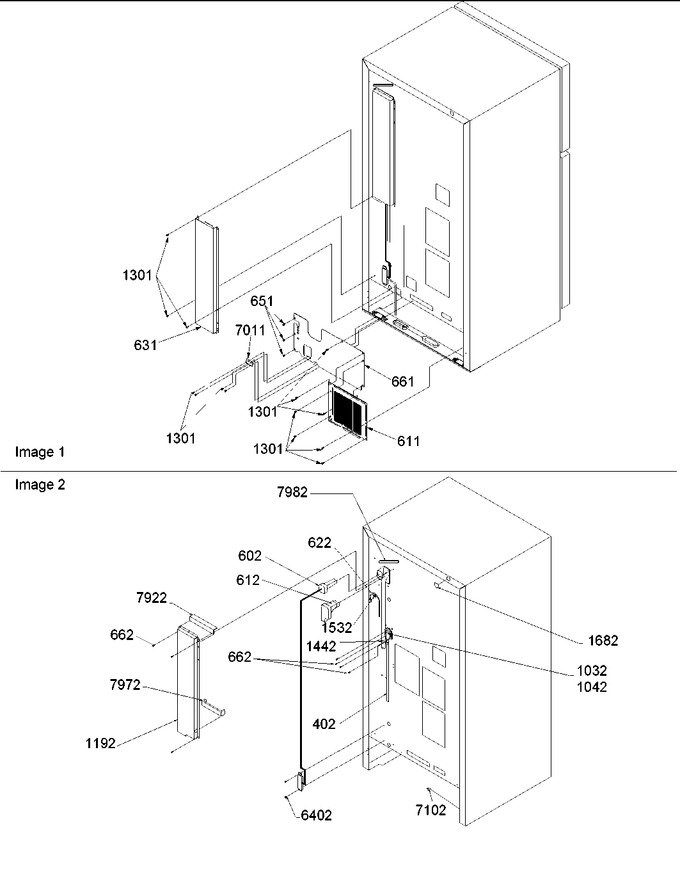

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 402 | 10908101 | Tube, Drain |
|
- | |||||
| 602 | 10699301 | Grommet |
|
- | |||||
| 611 | 12039807 | Back, Mach Comp |
|
- | |||||
| 612 | 10428001 | Plug, Ht Exch V |
|
- | |||||
| 622 | 12425102 | Cord, Power |
|
- | |||||
| 631 | 10442205 | Cover, Ht Exch |
|
- | |||||
| 651 | M0219704 | Screw |
|
- | |||||
| 661 | 12041847 | Assy, Mc Back |
|
- | |||||
| 662 | M0227217 | Screw, Sm |
|
- | |||||
| 1032 | 10163201 | Elbow Drain Tube |
|
- | |||||
| 1042 | A3132301 | Gasket |
|
- | |||||
| 1192 | 10442205 | Cover, Ht Exch |
|
- | |||||
| 1301 | M0227217 | Screw, Sm |
|
- | |||||
| 1442 | B8372901 | Clamp |
|
- | |||||
| 1532 | WPM0104106 | Clip (Replaces: M0104106) |
|
$ 8.17 | |||||
| 1682 | 10544301 | Plug, Im Tunnel |
|
- | |||||
| 6402 | WP489069 | Screw (Replaces: M0220617) |
|
Immediately | $ 8.40 | ||||
| 7011 | 12047201 | Plate-water Valve |
|
- | |||||
| 7102 | B5720303 | Clip |
|
- | |||||
| 7922 | 10913801 | Gskt, Ht Ex Cov |
|
- | |||||
| 7972 | B5759642 | Gasket |
|
- | |||||
| 7982 | B5759643 | Gasket |
|
- |
