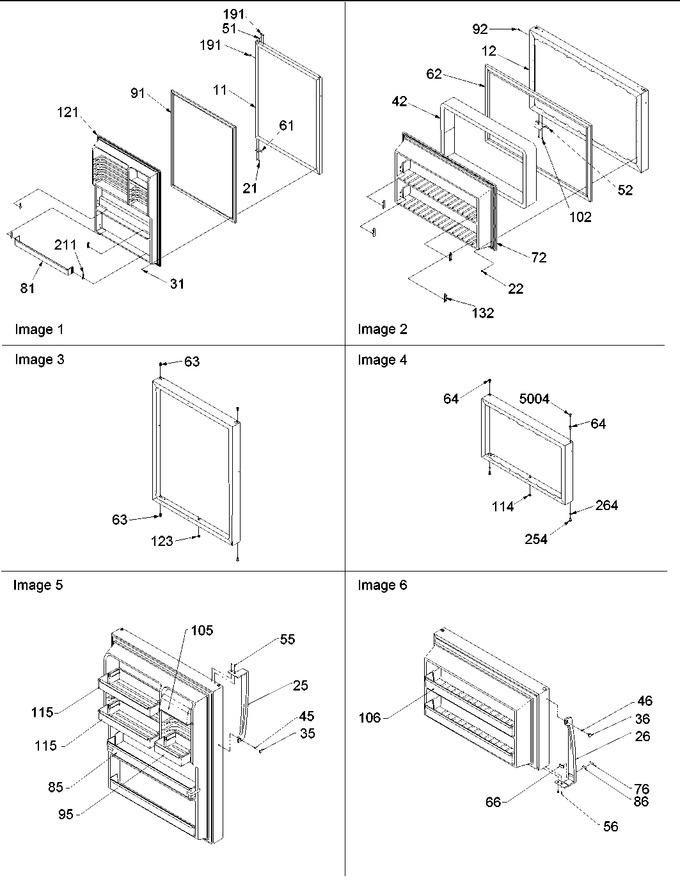

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 10481909W | Ass`y, Ref Door (white) |
|
- | |||||
| 12 | 10482010W | Assy, Fz Dr Fm (white) |
|
- | |||||
| 21 | WPW10348409 | Screw, Mounting (Replaces: M0211533) |
|
Immediately | $ 8.20 | ||||
| 22 | M0219730 | Screw |
|
$ 7.65 | |||||
| 25 | 10253527Q | Assy, W Ref Handle |
|
- | |||||
| 26 | 10253528Q | Assy, W Frz Hndl |
|
- | |||||
| 31 | M0219730 | Screw |
|
$ 7.65 | |||||
| 35 | 10201802 | Cover-handle Screw W |
|
- | |||||
| 36 | 10201801 | Cover-handle Screw W |
|
- | |||||
| 42 | B0523593 | Insulation, Batt Frz. Dr. |
|
- | |||||
| 45 | WPW10348409 | Screw, Mounting (Replaces: M0211533) |
|
Immediately | $ 8.20 | ||||
| 46 | WPW10348409 | Screw, Mounting (Replaces: M0211533) |
|
Immediately | $ 8.20 | ||||
| 51 | 12470501 | Plug Button (wh) |
|
- | |||||
| 52 | 12968202W | Stop, Door (wht) (Replaces: 10447108) |
|
$ 69.29 | |||||
| 55 | WPW10348409 | Screw (Replaces: M0221718) |
|
Immediately | $ 8.20 | ||||
| 56 | WPW10348409 | Screw (Replaces: M0221718) |
|
Immediately | $ 8.20 | ||||
| 61 | 12968202W | Stop, Door (wht) (Replaces: 10447108) |
|
$ 69.29 | |||||
| 62 | WP12550110Q | Gasket, Frz Dr (wht) (Replaces: 12529010) |
|
$ 298.65 | |||||
| 63 | 10961001 | Bushing, Door (wht) |
|
- | |||||
| 64 | 10961001 | Bushing, Door (wht) |
|
- | |||||
| 66 | 10184301 | Plug-nameplate W |
|
- | |||||
| 72 | 10461001Q | Liner, Frz Door (18) |
|
- | |||||
| 76 | 10184401 | Nameplate, Handle |
|
- | |||||
| 81 | 10419208 | Retainer, Ref Door |
|
- | |||||
| 85 | 10419108 | Retainer, Door Ref. |
|
- | |||||
| 86 | 10184501 | Pad Nameplate |
|
- | |||||
| 91 | WP12550109Q | Gasket, Ref Dr (wht) (Replaces: 12529009) |
|
Immediately | $ 322.33 | ||||
| 92 | WP67001130 | Plug, Handle Hole (wht) (Replaces: 12246601) |
|
Immediately | $ 5.98 | ||||
| 95 | 10502912 | Bucket, Ref Door |
|
- | |||||
| 102 | WPW10348409 | Screw, Mounting (Replaces: M0211533) |
|
Immediately | $ 8.20 | ||||
| 105 | 10423414 | Door,dairy |
|
- | |||||
| 106 | 10419208 | Retainer, Ref Door |
|
- | |||||
| 114 | M0310308 | Plug, Button (wht) |
|
- | |||||
| 115 | 10419708 | Shelf, Ref Door |
|
- | |||||
| 121 | 10461705 | Liner,ref Door |
|
- | |||||
| 123 | M0310308 | Plug, Button (wht) |
|
- | |||||
| 132 | 10202001 | Clip, Retainer |
|
- | |||||
| 191 | WP67001130 | Plug, Handle Hole (wht) (Replaces: 12246601) |
|
Immediately | $ 5.98 | ||||
| 211 | 10202001 | Clip, Retainer |
|
- | |||||
| 254 | 12028601 | Bushing, Door (wht) |
|
- | |||||
| 264 | 10252903 | Filter, Bushing |
|
- | |||||
| 5004 | 10686401 | Plug Button |
|
- |
