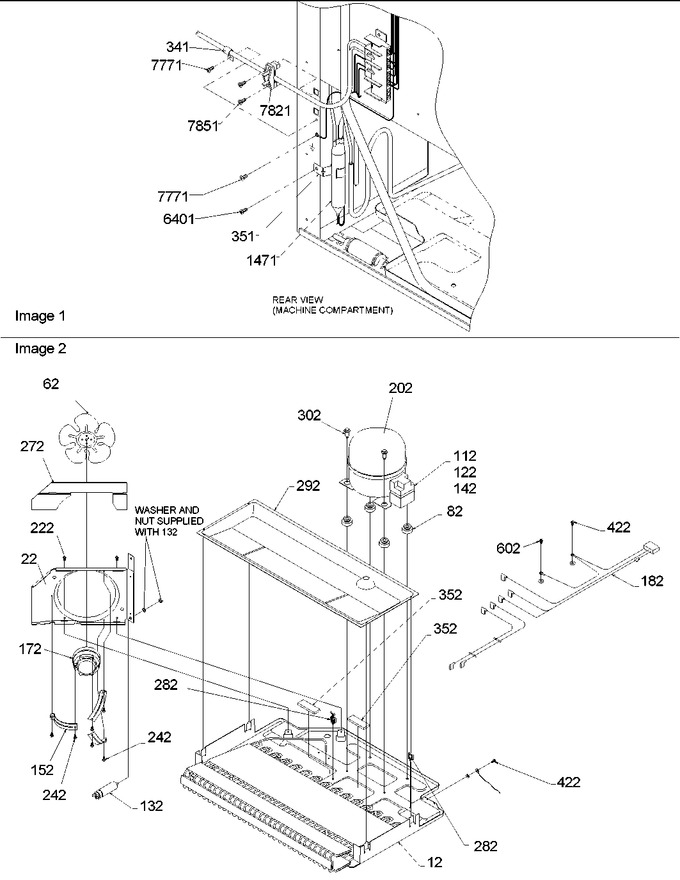

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	10481224		Assy,cond/pan-e Ct		Appelez-nous	-
22	10426911		Cond Fan Shrd-e Ct		Appelez-nous	-
62	B5742604		Blade, Fan		Appelez-nous	-
82	WPW10169124		Grommet, Compressor   (Replaces: 10835901)				$ 7.55
112	10377019		Overload- 4tm		Appelez-nous	-
122	10097206		Relay		Appelez-nous	-
132	10958303		Capacitor		Appelez-nous	-
142	10757301		Cover, Terminal		Appelez-nous	-
152	10582501		Bracket, Cond. Motor		Appelez-nous	-
172	10670403		Motor, Condenser		Appelez-nous	-
182	10968601		Harness, Mach Comp		Appelez-nous	-
202	W10309997		Compressor Tc Tpa1410y   (Replaces: 12049713)				$ 583.93
222	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 8.25
242	M0223816		Screw, Tr				$ 5.27
272	10442702		Gasket, Cond. Fan		Appelez-nous	-
282	B5667304		Wire Clip		Appelez-nous	-
292	10427404		Pan, Drain		Appelez-nous	-
302	M0221523		Screw, Shldr		Appelez-nous	-
351	10547001		Clip, Drier		Appelez-nous	-
352	B5759644		Gasket		Appelez-nous	-
422	WP489399		Screw, Ca   (Replaces: M0239216)				$ 7.30
602	12992301		Screw, Tf   (Replaces: M0231604)				$ 7.32
1471	WPB2150504		Drier   (Replaces: B2150504)				$ 136.98
6401	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
7771	WP489399		Screw, Ca   (Replaces: M0239216)				$ 7.30
7821	Y10203701		Strain Relief		Appelez-nous	-
7851	WP489474		Screw 1``   (Replaces: M0211021)			Immediately	$ 8.55
