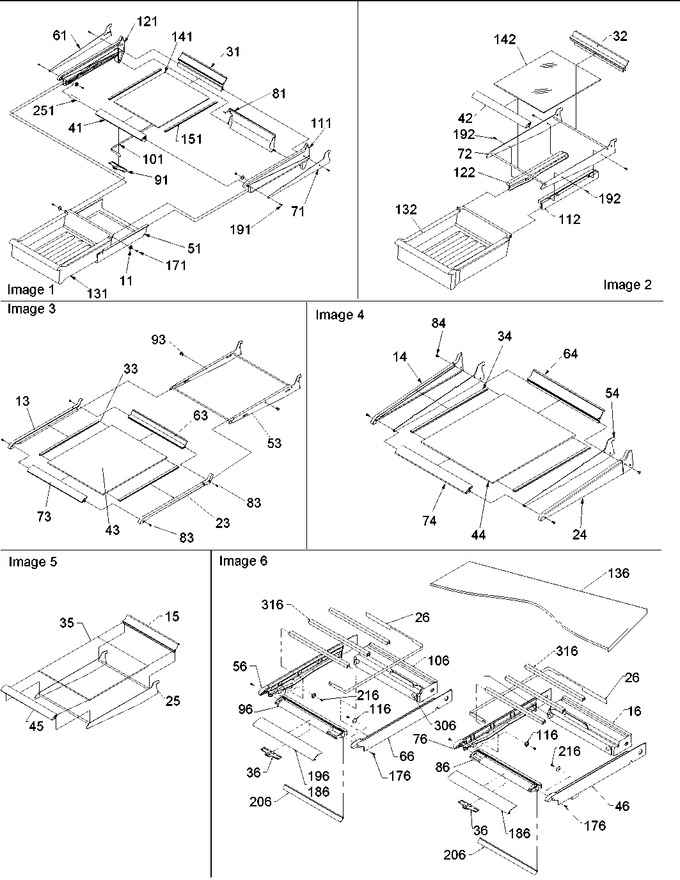

ATX518VW (BOM: P1322503W W) | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
14	10436603	Cover, Glass Shelf Rail	Appelez-nous	-
16	10433805	Rail, Crisper Back	Appelez-nous	-
24	10436604	Cover, Glass Shelf Rail	Appelez-nous	-
26	10467802	Band, Crisper Control (18-19)	Appelez-nous	-
31	10451405	Extrusion Mk Rear	Appelez-nous	-
34	10562504	Ext, Gl Shelf Side	Appelez-nous	-
36	10797501	Slide, Crisper	Appelez-nous	-
41	10450320	Extr-mk Front	Appelez-nous	-
44	10370014	Glass, Shelf (18-19)	Appelez-nous	-
46	10432703	Rail, Side Crisper	Appelez-nous	-
51	10440905	Sleeve, Mk	Appelez-nous	-
54	10681402	Rail, Pntd	Appelez-nous	-
56	10432704	Rail, Side Crisper	Appelez-nous	-
61	10681403	Rail, Pnt	Appelez-nous	-
64	10436906	Extr, Gl Shelf Rear	Appelez-nous	-
66	10432805	Rail, Ctr. Crisper			$ 21.50
71	10681402	Rail, Pntd	Appelez-nous	-
74	10436816	Ext-gl Shlf Front	Appelez-nous	-
76	10432806	Rail, Ctr. Crisper			$ 23.67
81	10445702	Scoop, Air	Appelez-nous	-
84	WPW10348409	Screw, Mounting (Replaces: M0211533)		Immediately	$ 8.20
86	10687701	Rail, Crisper Fr0nt(r)	Appelez-nous	-
91	10588201	Slide, Mtkp Cont.	Appelez-nous	-
96	10687702	Rail, Crisper Front(l)	Appelez-nous	-
101	10454003	Band, Mk Control	Appelez-nous	-
106	10435605	Rail, Crisper Back	Appelez-nous	-
111	10417301	Glide, Meat Kpr.	Appelez-nous	-
121	10432101	Glide, Meat Kpr.	Appelez-nous	-
131	10417115	Pan, Meat Keeper	Appelez-nous	-
132	10417115	Pan, Meat Keeper	Appelez-nous	-
136	10370016	Glass, Shelf (18)	Appelez-nous	-
141	10370014	Glass, Shelf (18-19)	Appelez-nous	-
151	10562504	Ext, Gl Shelf Side	Appelez-nous	-
176	67006692	Screw, Hi Lo (Replaces: M0237932)			$ 10.79
186	10688060	Extr-r Crisp Front	Appelez-nous	-
191	WPW10348409	Screw, Mounting (Replaces: M0211533)		Immediately	$ 8.20
196	10688059	Extr-l Crisp Front Periwinkle	Appelez-nous	-
206	10530205	Seal, Crisper	Appelez-nous	-
251	12027302	Stop- Slide (Replaces: 12019302)			$ 10.36
