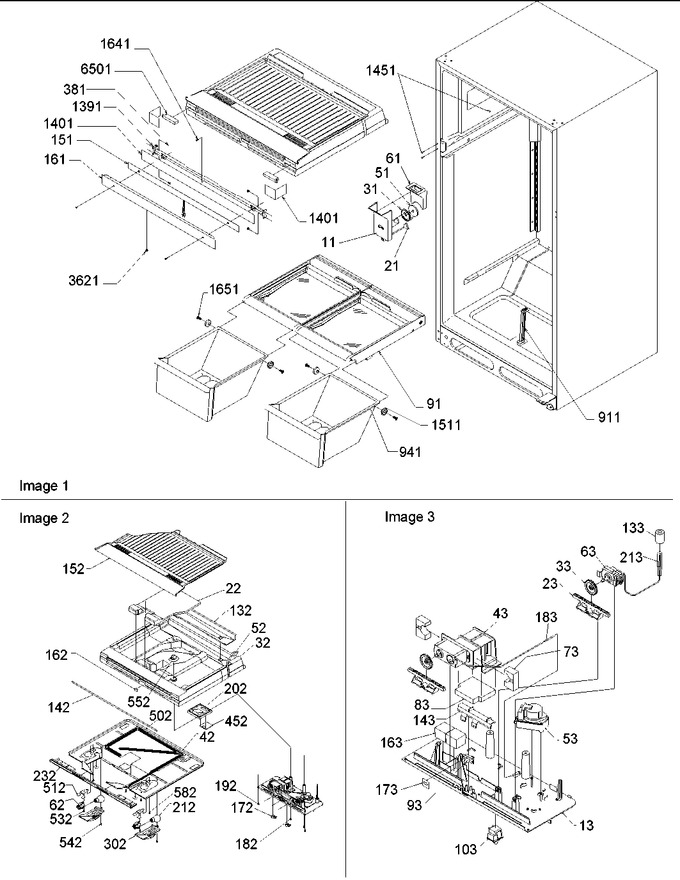

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 10642103 | Cover, Mk Air Sply |
|
- | |||||
| 13 | 12035107 | Housing, Control |
|
- | |||||
| 21 | 10852401 | Gasket, Mt Kpr Duct |
|
- | |||||
| 22 | 10476402 | Insert, Drain Block |
|
- | |||||
| 23 | 10439601 | Rack, Control |
|
- | |||||
| 31 | 10479401 | Control, Mt. Kpr. Air Sup |
|
- | |||||
| 32 | 10996001 | Assy Drain Block |
|
- | |||||
| 33 | 10442601 | Pinion, Control |
|
- | |||||
| 42 | 12035214 | Ref Top-e Ct |
|
- | |||||
| 43 | R0161072 | Assy, Damper Control |
|
- | |||||
| 51 | 12411301 | Insert, Mk Control |
|
- | |||||
| 52 | 10781106 | Harness,drain Block |
|
- | |||||
| 53 | 10428602 | Timer-defrost |
|
- | |||||
| 61 | 10479103 | Tunnel, Mt Kpr |
|
- | |||||
| 62 | D7845103 | Socket, Light |
|
- | |||||
| 63 | R0161084 | Assy, Fz Control |
|
- | |||||
| 73 | 10442801 | Insert,damper |
|
- | |||||
| 83 | 10442901 | Insulation, Damper |
|
- | |||||
| 91 | 10698538Q | Crisper Frame Assy |
|
- | |||||
| 93 | 10279202 | Switch, Heater |
|
- | |||||
| 103 | W11384469 | Switch, Light (Replaces: C3680308) |
|
Immediately | $ 39.09 | ||||
| 132 | 10435911 | Tray, Drip |
|
- | |||||
| 133 | 10673603 | Insulation, Cap |
|
- | |||||
| 142 | 10450837 | Membrane-breaker Sl1 |
|
- | |||||
| 143 | 10565101 | Shield, Wire |
|
- | |||||
| 151 | 10543608 | Heater- Mullion |
|
- | |||||
| 152 | 10995003 | Bottom, Frz |
|
- | |||||
| 161 | 10433361WD | Center Mullion-(white)e Ct |
|
- | |||||
| 162 | 10752201 | Cap-switch |
|
- | |||||
| 163 | 10900801 | Shield, Cont Hsg. |
|
- | |||||
| 172 | 10565401 | Knob, Control |
|
- | |||||
| 173 | 10877103 | Cover, Switch |
|
- | |||||
| 182 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 183 | A3012542 | Tube-plastic |
|
- | |||||
| 192 | M0224128 | Screw |
|
- | |||||
| 202 | 10995201 | Insert-mk Air Sply |
|
- | |||||
| 212 | M0360402 | Light Bulb (230/240 Vac) |
|
- | |||||
| 213 | A3012543 | Tube-plastic |
|
- | |||||
| 232 | 10435513 | Frame, Ref Top Brk |
|
- | |||||
| 302 | 10508701 | Shield, Refrig. Light |
|
- | |||||
| 381 | R9800670 | Screw, Tf (Replaces: M0238731) |
|
$ 10.58 | |||||
| 452 | 10594901 | Gasket, Mk Air Supply |
|
- | |||||
| 502 | 10775302 | Heater, Ref Top |
|
- | |||||
| 512 | 10907501 | Brkt, Light |
|
- | |||||
| 532 | M0223328 | Screw |
|
- | |||||
| 542 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 8.25 | ||||
| 552 | 10993701 | Cap-air |
|
- | |||||
| 582 | WP489128 | Screw (Replaces: M0253516) |
|
$ 11.40 | |||||
| 911 | 10461901 | Post, Crisper Support |
|
Immediately | $ 25.85 | ||||
| 941 | 10430216 | Pan-crisper |
|
- | |||||
| 1391 | 10433610 | Plate, Center Top |
|
- | |||||
| 1401 | B0523584 | Insulation Per Ft. |
|
- | |||||
| 1451 | M0311605 | Plug, Button (wht) |
|
- | |||||
| 1641 | M0253916 | Screw |
|
- | |||||
| 1651 | M0221523 | Screw, Shldr |
|
- | |||||
| 3621 | M0211520 | Screw - Sm |
|
- | |||||
| 6501 | 10772301 | Insulation |
|
- | |||||
| NI | 10785802 | Harness, Control |
|
- |
