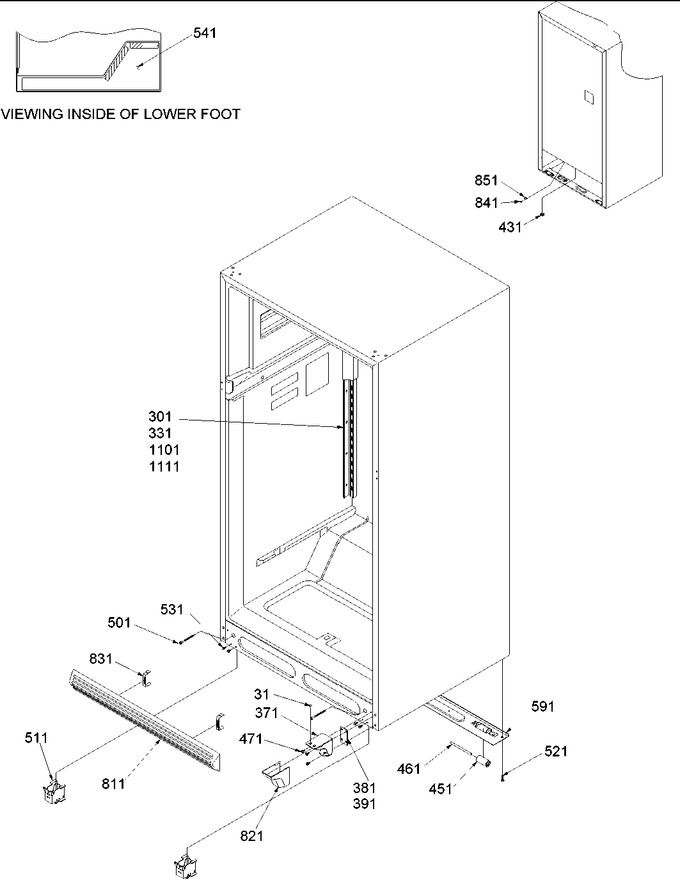

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
31	M0310330		Plug, Button White		Appelez-nous	-
301	67006425		Screw, Sm   (Replaces: M0238642)			Immediately	$ 6.95
331	12435701		Ladder, Side (l/r)		Appelez-nous	-
371	10585508		Hinge,(w)btm-e Ct		Appelez-nous	-
381	10447904		Shim Hinge		Appelez-nous	-
391	10447903		Shim, Btm Hinge		Appelez-nous	-
431	A3076901		Plug-button				$ 5.70
451	10450701		Roller, Rear				$ 28.91
461	10450901		Axle, Roller		Appelez-nous	-
471	WP67006715		Screw, Sm   (Replaces: M0241508)				$ 7.19
501	M0204336		Screw, Adj Roller		Appelez-nous	-
511	12452601Q		Assy, Roller Bracket		Appelez-nous	-
521	M0260242		Screw, Tf		Appelez-nous	-
531	W11573574		Screw, Sm   (Replaces: M0211031)			Immediately	$ 14.02
541	12403602		Insul, Sound		Appelez-nous	-
591	10427110		Cabinet Brace-pnt		Appelez-nous	-
811	12540301W		Grille, Toe (white) (19)		Appelez-nous	-
821	10584802		Cover, Lower Hinge (white)		Appelez-nous	-
831	10551502		Clip, Toe Grille				$ 5.84
841	M0227217		Screw, Sm		Appelez-nous	-
851	10547101		Clip, Tube		Appelez-nous	-
1101	12435801		Ladder, Center		Appelez-nous	-
1111	M0238636		Screw-sm		Appelez-nous	-
