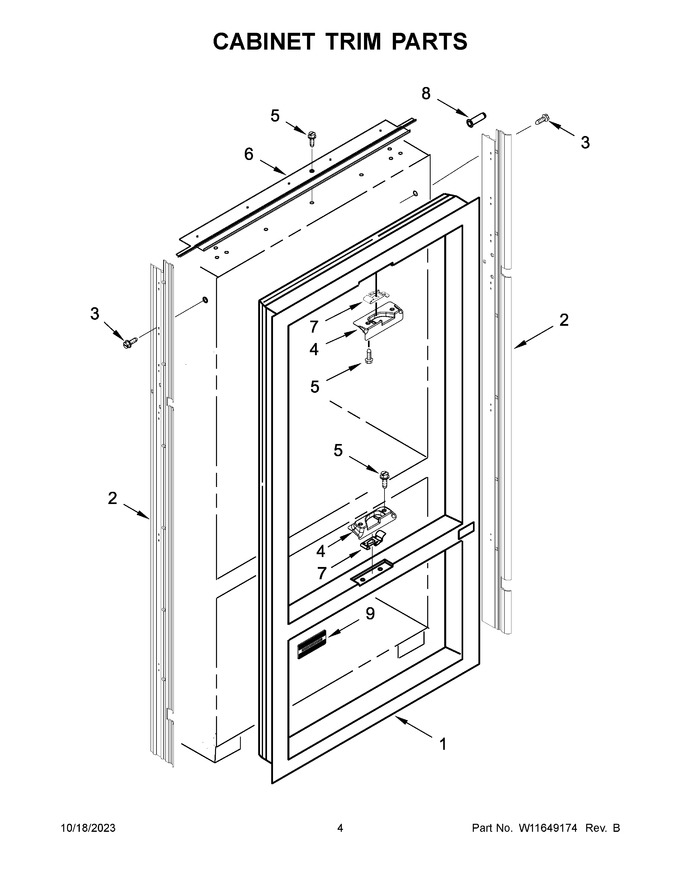

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARIF8D105703322849269150008CB6CEED8 | Breaker, Trim (not Serviced) |
|
- | |||||
| 2 | W11173662 | Assembly, Trim (includes Blind Threaded Insert) (left Side) (Replaces: W11085744) |
|
Immediately | $ 252.34 | ||||
| 3 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 7.67 | |||||
| 4 | W10672300 | Block, Pivot (top) |
|
$ 72.83 | |||||
| 5 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.02 | |||||
| 6 | 2314017 | Trim, Cabinet (top) (aluminum) |
|
$ 118.67 | |||||
| 7 | 2309230 | Contact, Mullion (top) |
|
$ 15.40 | |||||
| 8 | WPW10121451 | Insert, Blind Threaded (Replaces: W10121451) |
|
Immediately | $ 7.65 | ||||
| 9 | W10708610 | Cover, Hinge |
|
$ 112.19 | |||||
| 2A | W11173663 | Assembly, Trim (includes Blind Threaded Insert) (right Side) (Replaces: W11085745) |
|
$ 252.57 | |||||
| 4A | W10672302 | Block, Pivot (bottom) |
|
$ 72.93 | |||||
| 7A | 2309231 | Contact, Mullion (bottom) |
|
$ 51.72 |
