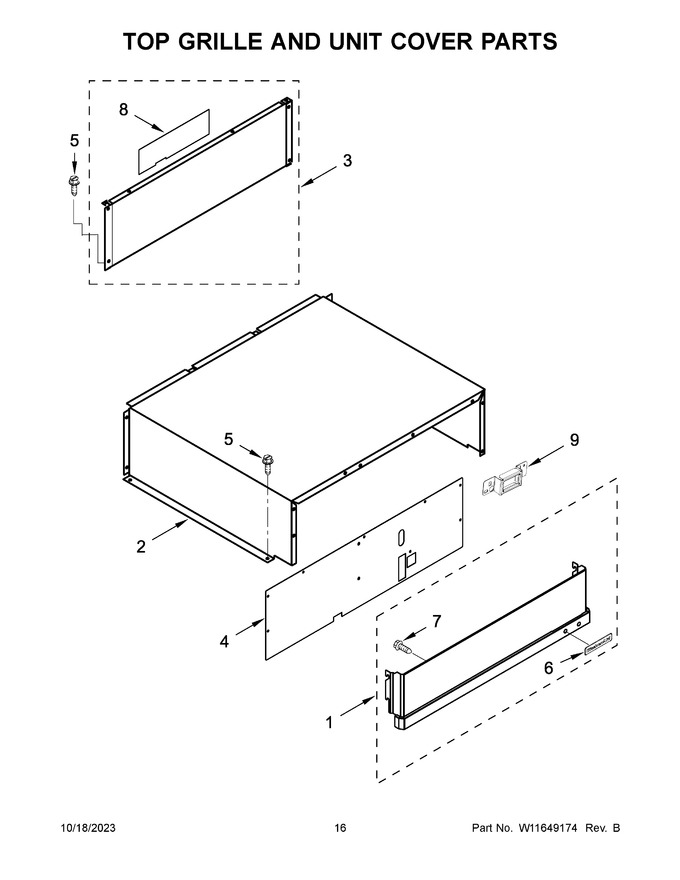

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11747345 | Assembly, Top Grille (black Stainless) (Replaces: W10752261) |
|
$ 672.64 | |||||
| 2 | W11735285 | Cover, Unit (Replaces: W10545068) |
|
Immediately | $ 196.16 | ||||
| 3 | 2256466 | Panel, Unit Back |
|
$ 311.64 | |||||
| 4 | W11435372 | Cover, Unit Front |
|
Immediately | $ 45.38 | ||||
| 5 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.86 | ||||
| 6 | W10909682 | Badge (Replaces: W10518672) |
|
Immediately | $ 72.57 | ||||
| 7 | WP489399 | Screw (Replaces: 489399) |
|
$ 6.95 | |||||
| 8 | W11244166 | Insulation, Unit Back Panel |
|
$ 75.23 | |||||
| 9 | W11356980 | Cover, Safety Switch |
|
- | |||||
| 1A | W11747344 | Assembly, Top Grille (stainless) (Replaces: W10645404) |
|
$ 693.54 |
