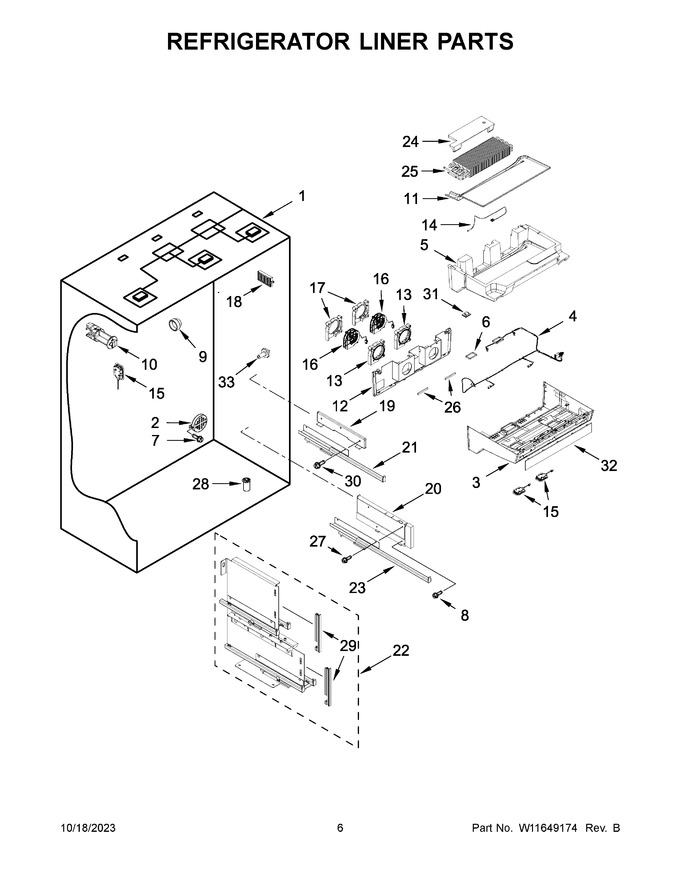

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI997B68941A9D514E58DAA4B61F32102E | Liner, Refrigerator (not Servicable) |
|
- | |||||
| 2 | W10600588 | Cover, Air Return |
|
- | |||||
| 3 | W10555476 | Cover, Evaporator |
|
Immediately | $ 228.82 | ||||
| 4 | W11661567 | Assembly, Evaporator Wire (includes Evaporator Thermistor) (Replaces: W10565852) |
|
Immediately | $ 69.95 | ||||
| 5 | W11712700 | Insulation, Evaporator (lower) (Replaces: W10555478) |
|
$ 91.02 | |||||
| 6 | W10638137 | Gasket, Evaporator Outlet |
|
$ 44.86 | |||||
| 7 | WP488729 | Screw (stainless) (Replaces: 487539) |
|
Immediately | $ 7.79 | ||||
| 8 | W10215666 | Screw |
|
$ 9.08 | |||||
| 9 | W10699426 | Support, Evaporator Assembly |
|
- | |||||
| 10 | W10555493 | Clip, Evaporator Mounting |
|
$ 21.20 | |||||
| 11 | W10555480 | Shield, Evaporator Heat |
|
Immediately | $ 160.37 | ||||
| 12 | W10555484 | Cover, Evaporator (rear) |
|
$ 192.92 | |||||
| 13 | W10538315 | Housing, Fan (front) |
|
$ 82.40 | |||||
| 14 | W11661569 | Thermistor (Replaces: W10667607) |
|
Immediately | $ 102.24 | ||||
| 15 | W11484836 | Assembly, Led Module (Replaces: W11229041) |
|
Immediately | $ 27.01 | ||||
| 16 | W11678257 | Fan, Icebox (Replaces: W10704104) |
|
$ 303.38 | |||||
| 17 | W10538317 | Housing, Fan (rear) |
|
$ 81.86 | |||||
| 18 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 14.34 | ||||
| 19 | W10569850 | Spacer, Crisper |
|
- | |||||
| 20 | W10569847 | Spacer, Deli (left Hand) |
|
- | |||||
| 21 | W10569887 | Slide, Crisper Pan (left Hand) |
|
$ 239.64 | |||||
| 22 | W10585157 | Assembly, Center Support |
|
- | |||||
| 23 | W10569892 | Slide, Deli Pan (left Hand) |
|
$ 235.32 | |||||
| 24 | W10555472 | Insulation, Evaporator (upper) |
|
$ 40.66 | |||||
| 25 | W11649687 | Assembly, Evaporator (Replaces: W11267081) |
|
Immediately | $ 306.44 | ||||
| 26 | W10740077 | Gasket, Evaporator Housing (rear) |
|
$ 27.44 | |||||
| 27 | W11830745 | Screw (Replaces: 8533929) |
|
- | |||||
| 28 | WP2210509 | Body, Valve Tube (Replaces: 2171931) |
|
$ 94.43 | |||||
| 29 | W10628280 | Trim, Center Support (deli (grey)) |
|
- | |||||
| 30 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 7.82 | ||||
| 31 | W10741189 | Clip, Wiring |
|
- | |||||
| 32 | W11411871 | Assembly, User Interface (Replaces: W10776331) |
|
Immediately | $ 369.56 | ||||
| 33 | W10789219 | Assembly, Shelf Stud (includes Screw) |
|
$ 24.22 | |||||
| 20A | W10569844 | Spacer, Deli (right Hand) |
|
- | |||||
| 21A | W10569886 | Slide, Crisper Pan (right Hand) |
|
Immediately | $ 239.64 | ||||
| 23A | W10569891 | Slide, Deli Pan (right Hand) |
|
$ 235.32 | |||||
| 29A | W10604673 | Trim, Center Support (crisper (grey)) |
|
- |
