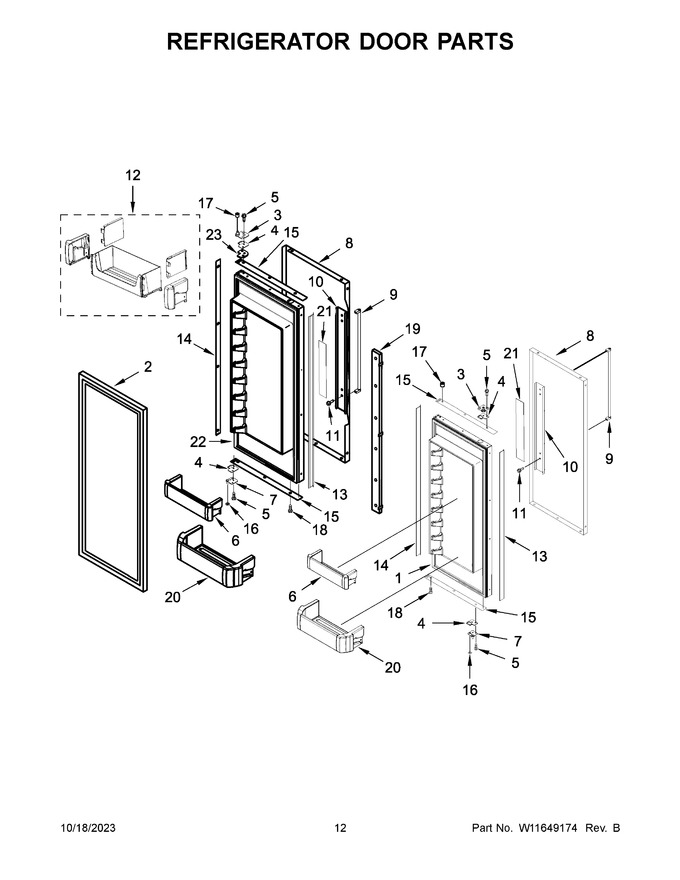

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11827080		Door, Refrigerator (includes Item 2) (left Hand)   (Replaces: W10796466)				$ 722.43
2	W10600741		Gasket, Door (grey)				$ 228.32
3	W11673500		Assembly, Hinge (top)   (Replaces: W11414335)			Immediately	$ 108.07
4	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 108.07
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.02
6	W10529548		Bin, Door (shallow)				$ 276.96
7	W10273369		Assembly, Bottom Hinge (left Hand)				$ 38.84
8	W11797602		Skin, Door (black Stainless)   (Replaces: W10752225)		Appelez-nous	-
9	W10783284		Handle, Door (stainless)   (Replaces: W10541592)				$ 206.39
10	W10127710		Plate, Handle Door			Immediately	$ 24.70
11	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.76
12	W11610621		Bin, Top Door		Appelez-nous	-
13	W10600736		Spacer, Door Edge (handle Side)				$ 289.20
14	W10600734		Spacer, Door Edge (hinge Side)				$ 283.01
15	W10600732		Spacer, Door (top/bottom)				$ 160.93
16	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 11.20
17	WP2316859		Bushing, Extension Arm   (Replaces: 2316859)			Immediately	$ 51.62
18	W10851443		Screw (black)   (Replaces: 8281252)			Immediately	$ 7.69
19	W11812028		Assembly, Mullion   (Replaces: W11590864)			Immediately	$ 232.25
20	W10529544		Bin, Door (gallon)				$ 300.96
21	ARI765E3BCEDCBF088335076E36E706F61A		Filler (not Serviced-included With Skin)		Appelez-nous	-
22	W11827071		Door, Refrigerator (includes Item 2) (right Hand)   (Replaces: W10600634)				$ 773.22
23	W11673500		Spacer, Hinge (top)   (Replaces: W11550793)			Immediately	$ 108.07
18A	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 10.88
7A	W10273367		Assembly, Bottom Hinge (right Hand)				$ 38.89
8A	W11797627		Skin, Door (stainless)   (Replaces: W10541583)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
