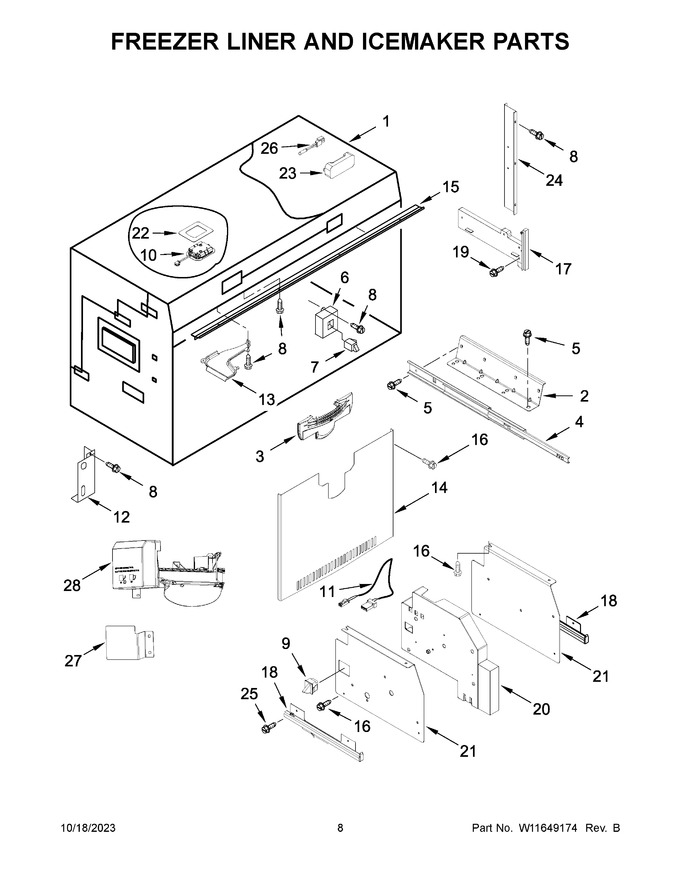

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI68BAEA0A3E8B63A80553C366BB3511CC		Liner, Freezer (not Servicable)		Appelez-nous	-
2	W10744328		Support, Drawer Slide (grey)		Appelez-nous	-
3	W10541687		Grille, Freezer Air (grey)				$ 76.84
4	W11650036		Slide, Freezer Basket   (Replaces: W11415033)			Immediately	$ 346.34
5	W10061370		Screw				$ 8.19
6	W10606833		Cover, Light Switch (grey)		Appelez-nous	-
7	W11670534		Switch, Light   (Replaces: W11520473)			Immediately	$ 22.25
8	W11624204		Screw   (Replaces: 486194)				$ 14.02
9	W11289496		Switch, Light   (Replaces: W10847850)			Immediately	$ 38.71
10	W11484836		Assembly, Led Module   (Replaces: W11229041)			Immediately	$ 27.01
11	W10568445		Assembly, Ice Bucket Switch Wire				$ 71.22
12	W11575966		Cover, Icemaker Wiring		Appelez-nous	-
13	W10578092		Duct, Air Flow (icemaker)		Appelez-nous	-
14	W11523752		Cover, Evaporator		Appelez-nous	-
15	W10710401		Assembly, Air Deflector				$ 141.46
16	WPW10001160		Screw (stainless)   (Replaces: W10001160)				$ 9.84
17	W10664384		Spacer, Drawer (left Hand (grey))		Appelez-nous	-
18	2306117		Slide, Freezer Bin (left Hand)				$ 265.40
19	WP488163		Screw   (Replaces: 488163)				$ 7.54
20	W10600628		Divider, Freezer (grey)		Appelez-nous	-
21	W10600630		Support, Slide (left Hand)				$ 142.58
22	W10672548		Shim, Led				$ 20.10
23	W10609678		Cover, Thermistor				$ 37.32
24	W10532983		Assembly, Evaporator Cover Rail				$ 107.84
25	WP488163		Screw   (Replaces: 488163)				$ 7.54
26	W11724692		Thermistor   (Replaces: W10280386)			Immediately	$ 32.00
27	W11639152		Extension, Icemaker Wiring Cover		Appelez-nous	-
28	W11744241		Assembly, Icemaker   (Replaces: W11322220)			Immediately	$ 404.80
17A	W10664382		Spacer, Drawer (right Hand (grey))		Appelez-nous	-
18A	2306116		Slide, Freezer Bin (right Hand)				$ 294.24
21A	W10600626		Support, Slide (right Hand)				$ 99.70
