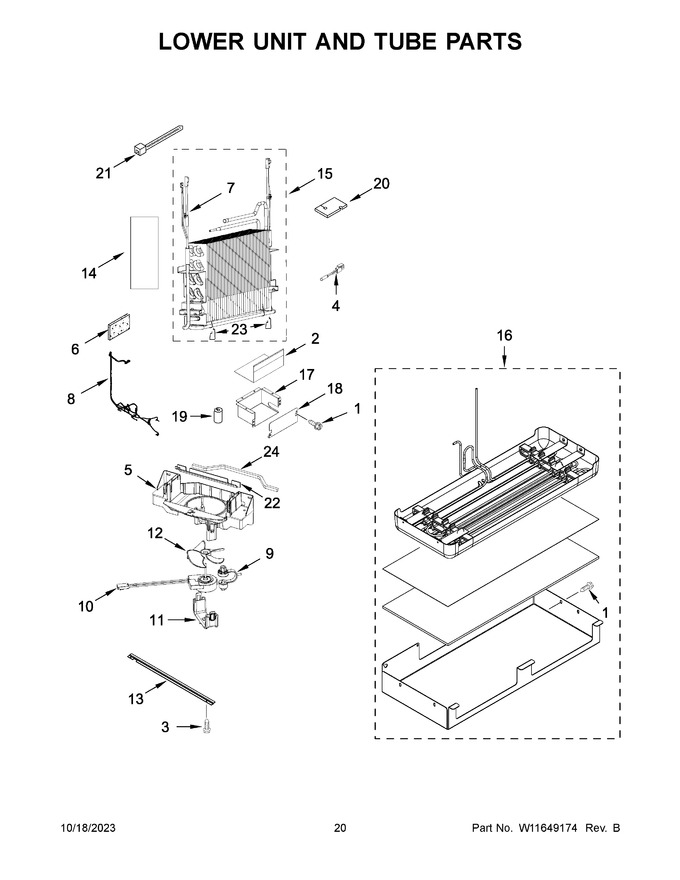

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 7.86 | ||||
| 2 | W10321050 | Shelf, Wiring Cover |
|
- | |||||
| 3 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.02 | |||||
| 4 | W11649686 | Thermistor, Evaporator (includes Clip) (Replaces: W11602767) |
|
Immediately | $ 38.26 | ||||
| 5 | W10803566 | Shroud, Evaporator Fan |
|
- | |||||
| 6 | W11553819 | Insulation, Sound Deadening (Replaces: 2169104) |
|
Immediately | $ 14.07 | ||||
| 7 | W11311043 | Heater, Defrost |
|
Immediately | $ 251.37 | ||||
| 8 | ARI979C8CC753F702B16BE321F51DE68B7D | Assembly, Freezer Wire (not Serviced) |
|
- | |||||
| 9 | W11676465 | Grommet, Fan Motor (Replaces: 12951101) |
|
Immediately | $ 14.82 | ||||
| 10 | W11396715 | Motor, Fan (Replaces: W10556724) |
|
$ 208.52 | |||||
| 11 | W11712696 | Clip, Fan Motor (Replaces: 12956601) |
|
Immediately | $ 11.66 | ||||
| 12 | WP2163777 | Blade, Fan (Replaces: 2200509) |
|
Immediately | $ 66.15 | ||||
| 13 | 2320554 | Support, Drain Pan |
|
- | |||||
| 14 | W11556942 | Gasket, Evaporator Bypass |
|
- | |||||
| 15 | W11649689 | Assembly, Evaporator And Heater (Replaces: W11516439) |
|
$ 383.94 | |||||
| 16 | W10890886 | Assembly, Drain Pan (Replaces: W10735008) |
|
Immediately | $ 353.79 | ||||
| 17 | W11756952 | Cover, Wire Box (Replaces: W10321048) |
|
- | |||||
| 18 | WPW10309012 | Cover, Wiring (Replaces: W10309012) |
|
$ 77.64 | |||||
| 19 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 7.70 | |||||
| 20 | W11550598 | Block, Evaporator Side |
|
- | |||||
| 21 | WPW10339879 | Tie, Wire (Replaces: 2155774) |
|
$ 7.90 | |||||
| 22 | W10567169 | Diverter, Air Shroud |
|
- | |||||
| 23 | W11538317 | Clip, Defrost Heater |
|
- | |||||
| 24 | W10762685 | Gasket, Foam |
|
- |
