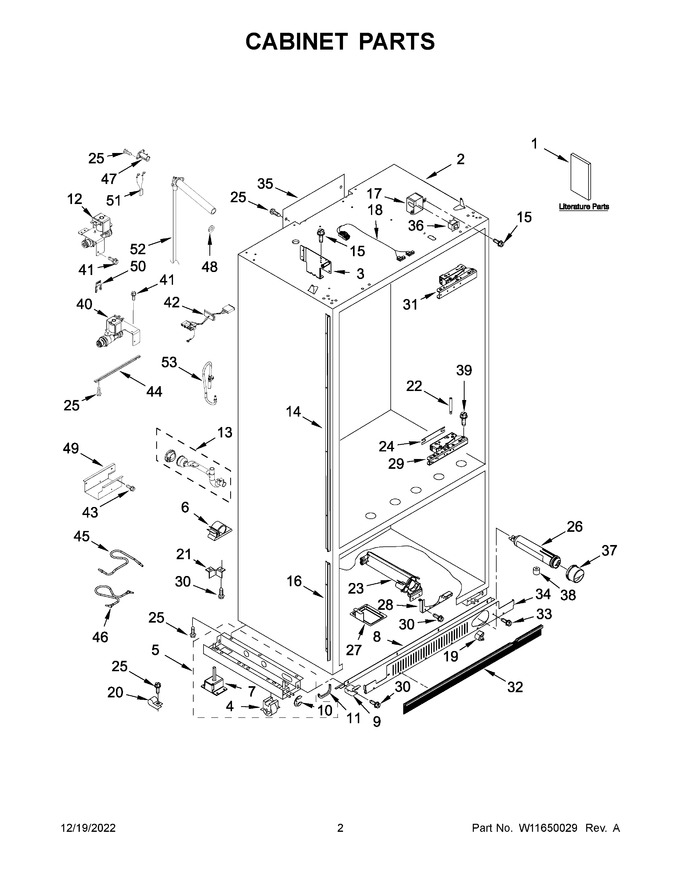

02 - Cabinet Parts


03 - Cabinet Trim Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner And Icemaker Parts


06 - Shelf Parts


07 - Refrigerator Door Parts


08 - Freezer Door And Basket Parts


09 - Top Grille And Unit Cover Parts


10 - Upper Unit Parts


11 - Lower Unit And Tube Parts


12 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11511882		Use And Care Guide		Appelez-nous	-
2	NP		Following Parts Not Illustrated		Appelez-nous	-
3	W11042558		Bracket, Grille (includes Rivet Nut) Left Hand (grey)				$ 95.20
4	WPW10138054		Assembly, Roller   (Replaces: W10138054)				$ 45.34
5	W10860229		Support, Leveler Assembly (left Hand)   (Replaces: W10279275)				$ 381.83
6	W10663352		Clip				$ 21.91
7	2005032		Leveler, Adjustable			Immediately	$ 200.07
8	W10606812		Trim, Top Grille (grey)				$ 291.88
9	W10839844		Bracket, Grill Mounting   (Replaces: 2307640)				$ 43.26
10	2006841		Ring, Retainer				$ 92.66
11	2307584		Grommet, Crossover Tube				$ 23.40
12	W11246413		Valve, Isolation (no Flow Washer)   (Replaces: W10578757)			Immediately	$ 132.98
13	W11291510		Assembly, Drain Tube				$ 76.97
14	W10687588		Trim, Side, Left Hand (grey)		Appelez-nous	-
15	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
16	W10714137		Trim, Side, Left Hand (grey)				$ 87.74
17	W11624203		Cover, Switch (left & Right Hand)   (Replaces: W11577783)		Appelez-nous	-
18	W10740131		Assembly, Top Switch Jumper Wire				$ 128.84
19	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 76.42
20	W11456069		Clamp, Tube   (Replaces: M0108107)			Immediately	$ 22.40
21	2006617		Bracket, Base Support (rear)		Appelez-nous	-
22	W10234202		Pin, Door Stop				$ 91.73
23	WPW10121140		Housing, Water Filter   (Replaces: W10121140)			Immediately	$ 171.96
24	W10291661		Spacer, Hinge				$ 16.87
25	W11624204		Screw   (Replaces: 486194)				$ 14.72
26	EDR3RXD1B		Filter, Water   (Replaces: W10121146)			Immediately	$ 49.99
27	2318189		Tray, Filter Drip				$ 148.73
28	W11755873		Bracket, Filter   (Replaces: W10674648)				$ 80.33
29	W10828686		Hinge, Bottom (grey)   (Replaces: W10806865)				$ 459.39
30	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 8.26
31	W10691145		Hinge, Top, Left Hand (grey)			Immediately	$ 472.48
32	WPW10188549		Skirt, Grille (black)   (Replaces: W10188549)				$ 144.20
33	WP489464		Screw   (Replaces: W10005050)			Immediately	$ 8.38
34	W11739146		Grille, Bottom   (Replaces: W10189198)				$ 212.66
35	2215612		Cover, Air Duct		Appelez-nous	-
36	W11624786		Switch, Light   (Replaces: W11593919)			Immediately	$ 43.11
37	W11238395		Cap, Water Filter (black)   (Replaces: W10797527)			Immediately	$ 50.68
38	2005433		Spacer				$ 23.33
39	W11721628		Screw   (Replaces: W11370632)			Immediately	$ 14.78
40	W11225845		Valve, Solenoid   (Replaces: W10574769)			Immediately	$ 120.60
41	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
42	W11479397		Assembly, Water Valve Wire				$ 78.74
43	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
44	2320559		Support, Valve				$ 88.79
45	W10619899		Tube, Filter Inlet				$ 46.24
46	W10635851		Tube, Filter Outlet				$ 88.57
47	WP2221240		Heater, Fill Tube   (Replaces: 2221240)				$ 206.58
48	WP1106508		Gasket, Seal   (Replaces: 1106508)			Immediately	$ 10.43
49	W10619291		Shield, Valve Electrical		Appelez-nous	-
50	W10782424		Locking Ring (5/16)		Appelez-nous	-
51	W10482373		Assembly, Fill Tube Heater Wire				$ 125.10
52	2317847		Assembly, Water Inlet Tube				$ 86.35
53	W11690636		Line, Water   (Replaces: W10577944)				$ 130.54
14A	W10687582		Trim, Side (right Hand Grey)				$ 242.42
16A	W10687583		Trim, Side Right Hand (grey)				$ 161.69
1A	W11113370		Energy Guide		Appelez-nous	-
1B	W11511885		Tech Sheet		Appelez-nous	-
1C	W11511887		Wiring Diagram		Appelez-nous	-
1D	W11511880		Installation Instructions		Appelez-nous	-
31A	W11700299		Hinge, Top Right Hand (grey)   (Replaces: W10691136)			Immediately	$ 507.95
3A	W11042559		Bracket, Grille (includes Rivet Nut), Right Hand (grey)				$ 97.28
50A	W10782423		Locking Ring (1/4")				$ 24.37
5A	W10860448		Support, Leveler Assembly (right Hand)   (Replaces: W10138423)			Immediately	$ 383.00
NI	W11175806		Kit, Installation   (Replaces: W10613135)				$ 279.62
NI	W10234156		Installation Block				$ 16.77
NI	W10488118		Template, Door (wood Panel)				$ 118.67
NI	W10744761		Template, Grill (wood Panel)				$ 81.92
NI	NP		Following Parts Not Illustrated		Appelez-nous	-
