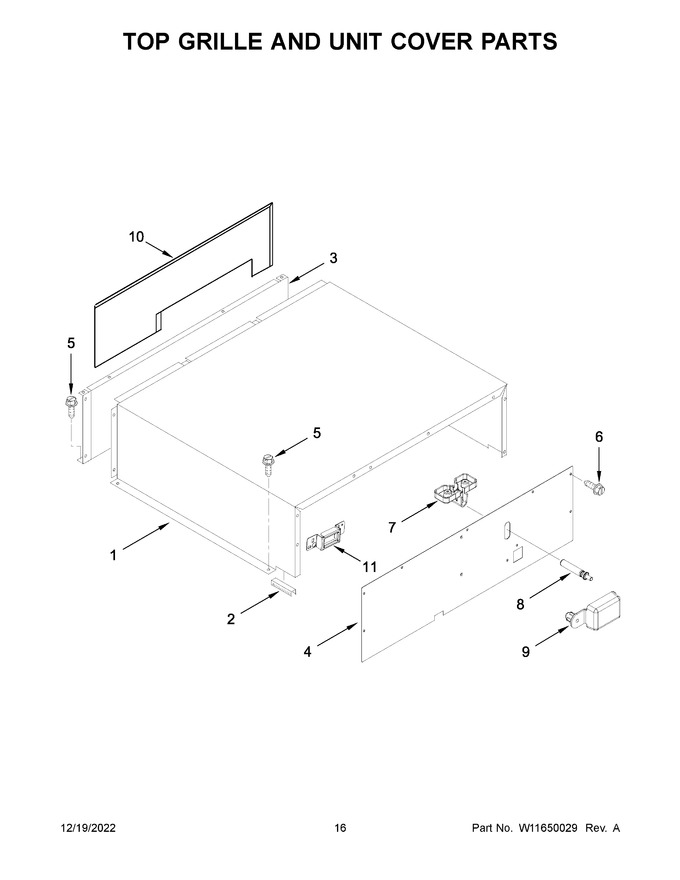

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11735285 | Cover, Unit (Replaces: W10545068) |
|
Immediately | $ 205.97 | ||||
| 2 | 2215910 | Grommet, Flexible |
|
$ 94.32 | |||||
| 3 | 2256466 | Panel, Unit Back |
|
$ 327.22 | |||||
| 4 | W11435372 | Cover, Unit Front |
|
Immediately | $ 47.65 | ||||
| 5 | WP965173 | Screw (Replaces: 487415) |
|
Immediately | $ 11.87 | ||||
| 6 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 8.40 | ||||
| 7 | W10646967 | Damper, Mount |
|
$ 72.42 | |||||
| 8 | W11251734 | Strike, Damper (Replaces: W10646961) |
|
$ 23.82 | |||||
| 9 | W10770988 | Damper, Door |
|
$ 203.35 | |||||
| 10 | W11244166 | Insulation, Unit Back Panel |
|
$ 78.99 | |||||
| 11 | W11356980 | Cover, Safety Switch |
|
- |
