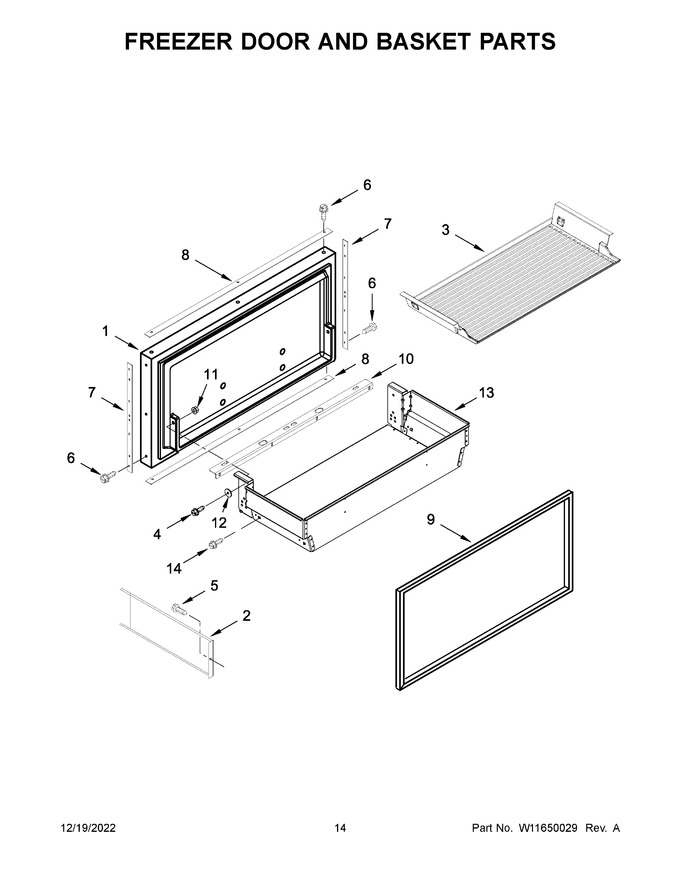

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11827068 | Door, Freezer (includes Item 9) (Replaces: W10605563) |
|
$ 811.89 | |||||
| 2 | W10606764 | Divider, Basket (grey) |
|
- | |||||
| 3 | W10665413 | Mat, Basket (grey) |
|
$ 283.65 | |||||
| 4 | W10761334 | Screw |
|
$ 13.00 | |||||
| 5 | W10678208 | Screw (black) |
|
$ 20.16 | |||||
| 6 | W10851443 | Screw (black) (Replaces: 8281252) |
|
Immediately | $ 8.13 | ||||
| 7 | W10606810 | Trim, Door (side) (grey) |
|
$ 201.67 | |||||
| 8 | W10606809 | Trim, Door (top And Bottom) (grey) |
|
- | |||||
| 9 | W10803131 | Gasket, Door (black) (Replaces: W10606758) |
|
Immediately | $ 349.30 | ||||
| 10 | W11256496 | Bracket, Panel Mounting (grey) (Replaces: W10606815) |
|
Immediately | $ 77.68 | ||||
| 11 | W10771111 | Nut |
|
Immediately | $ 20.25 | ||||
| 12 | W10001190 | Washer |
|
$ 8.80 | |||||
| 13 | W10770920 | Assembly, Freezer Basket (grey) |
|
Immediately | $ 444.56 | ||||
| 14 | W10109030 | Screw |
|
$ 15.35 |
