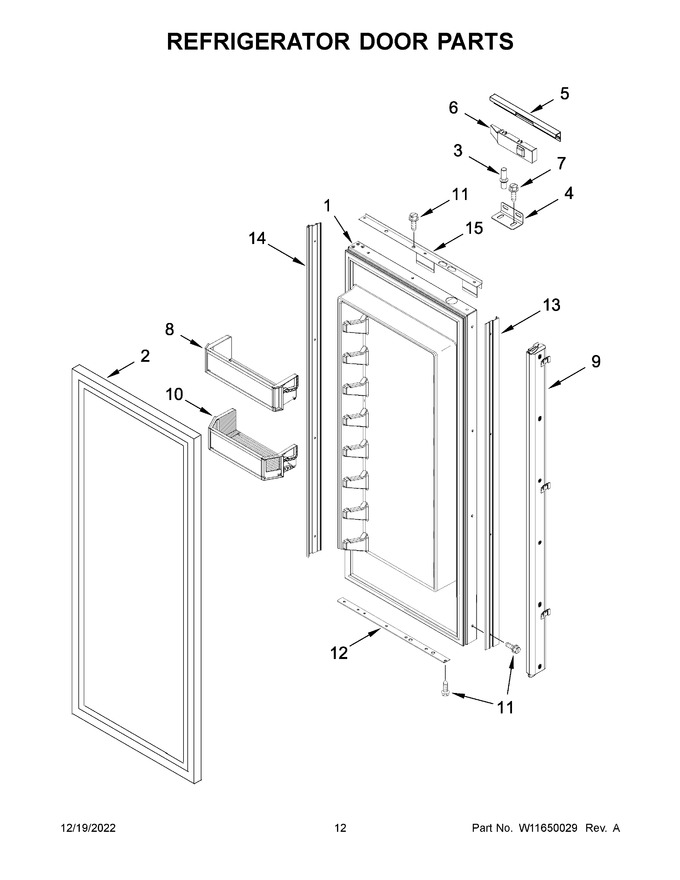

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11827072		Door, Refrigerator (includes Item 2) (left Hand)   (Replaces: W10796467)				$ 811.88
2	W11674371		Gasket, Door (black)   (Replaces: W10606752)				$ 297.52
3	W10234194		Pin, Top Door				$ 17.66
4	W10606841		Bracket, Panel Mounting (grey)				$ 39.81
5	W10606808		Cover, Door (top) Left Hand Grey)				$ 262.40
6	W10606813		Insert, Door Top (grey)			Immediately	$ 36.38
7	WPW10142233		Screw   (Replaces: W10142233)				$ 8.93
8	W10529452		Bin, Door				$ 387.29
9	W11832203		Assembly, Mullion (charcoal Sparkle)   (Replaces: W11590869)			Immediately	$ 235.62
10	W11350962		Bin, Door (gallon)				$ 374.45
11	W10851443		Screw (black)   (Replaces: 8281252)			Immediately	$ 8.13
12	W10606805		Trim, Door (bottom) Left Hand (grey)		Appelez-nous	-
13	W10606806		Trim, Door (handle Side) Left Hand (grey)				$ 289.97
14	W10606803		Trim, Door (hinge Side) (grey)			Immediately	$ 102.29
15	W10651648		Trim, Door (top) Left Hand (grey)		Appelez-nous	-
12A	W10606801		Trim, Door (bottom) Right Hand (grey)		Appelez-nous	-
13A	W10606802		Trim, Door (handle Side) Right Hand (grey)				$ 115.42
15A	W10606800		Trim, Door (top) Right Hand (grey)		Appelez-nous	-
1A	W11827077		Door, Refrigerator (includes Item 2) (right Hand)   (Replaces: W10605556)				$ 811.88
5A	W10726562		Cover, Door (top) Right Hand Grey)				$ 159.52
6A	W10606814		Insert, Door Bottom (grey)				$ 34.47
NI	W10772221		Mat, Door Bin			Immediately	$ 132.09
NI	NP		Following Parts Not Illustrated		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
