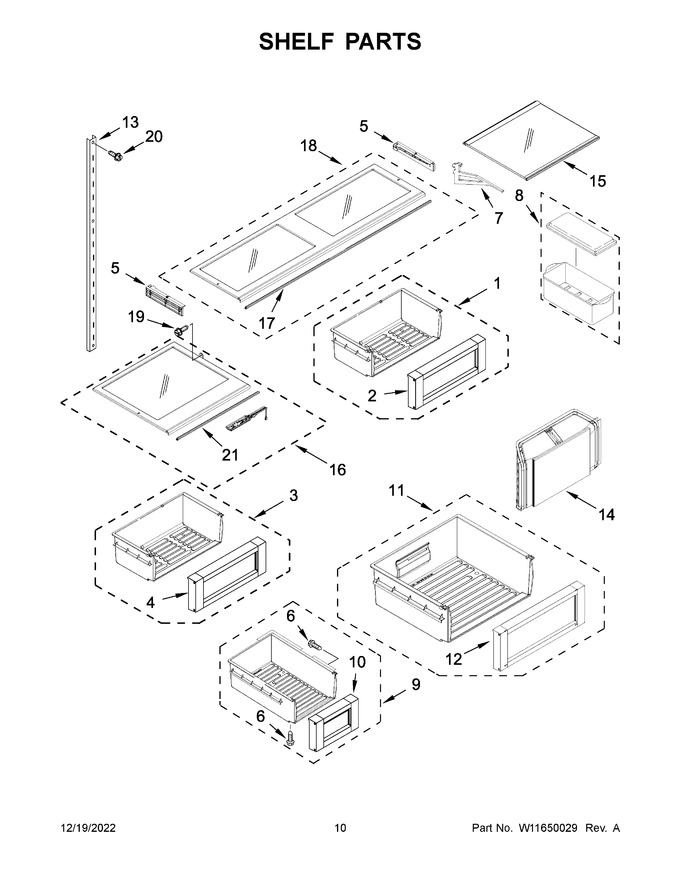

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10529501		Assembly, Crisper Pan				$ 460.58
2	W10529479		Assembly, Crisper Pan Front				$ 384.55
3	W10529506		Assembly, Deli Pan				$ 342.31
4	W10529487		Assembly, Deli Pan Front		Appelez-nous	-
5	W10569842		Support, Crisper Cover Left Hand (grey)		Appelez-nous	-
6	WP488787		Screw   (Replaces: 488886)				$ 11.26
7	W11690161		Sidearm, Shelf   (Replaces: W10605575)			Immediately	$ 51.64
8	WP2221071A		Assembly, Egg Bin   (Replaces: 2221071)				$ 25.79
9	W10626679		Assembly, Ice Pan				$ 378.87
10	W10626676		Assembly, Ice Pan (front)		Appelez-nous	-
11	W10626681		Assembly, Freezer Pan				$ 382.08
12	W10626678		Assembly, Front Pan				$ 382.39
13	W10743255		Ladder, Shelf Left Hand (black)		Appelez-nous	-
14	W11462816		Assembly, Produce Preserver   (Replaces: W10826105)			Immediately	$ 17.15
15	WPW10198701		Assembly, Shelf   (Replaces: W10198701)				$ 244.06
16	W10559654		Cover, Deli Bin (left Hand)				$ 340.43
17	W10709357		Gasket Cover, Front (crisper) (grey)		Appelez-nous	-
18	WPW10569917		Cover, Crisper   (Replaces: W10569917)				$ 297.80
19	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 8.26
20	W10678207		Screw   (Replaces: W10832438)				$ 16.43
21	W10709358		Gasket Cover, Front (deli) (grey)		Appelez-nous	-
13A	W10743254		Ladder, Shelf Right Hand (black)		Appelez-nous	-
13B	W10743230		Ladder, Shelf Center (black)		Appelez-nous	-
16A	W10559655		Cover, Deli Bin (right Hand)				$ 330.83
5A	W10569839		Support, Crisper Cover Right Hand (grey)		Appelez-nous	-
