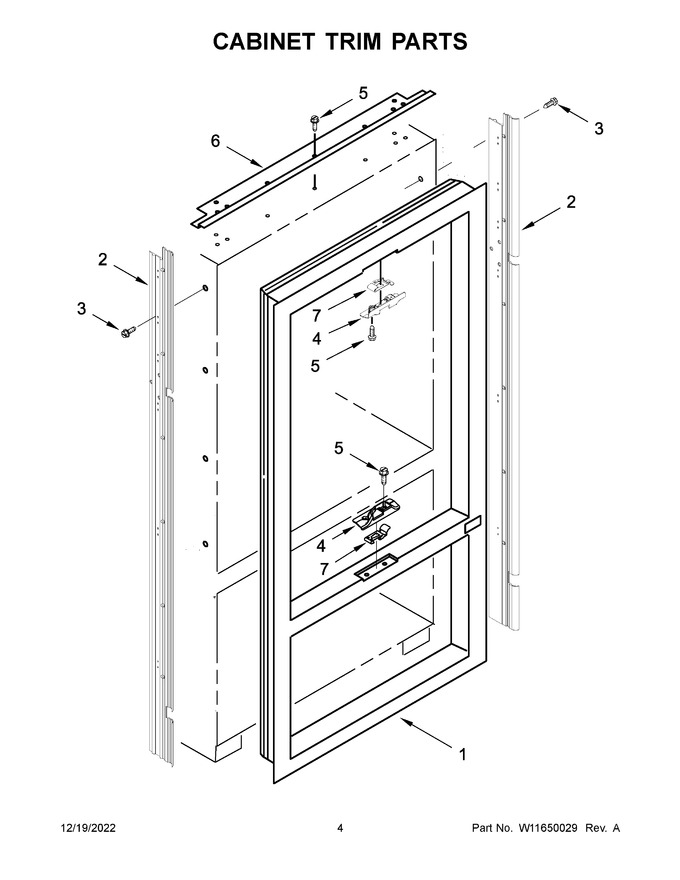

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Following Parts Not Illustrated |
|
- | |||||
| 2 | W10714136 | Trim, Cabinet (side) Left Hand (black) |
|
$ 364.25 | |||||
| 3 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 8.05 | |||||
| 4 | W10672299 | Contact, Mullion (grey) |
|
$ 76.77 | |||||
| 5 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 6 | W11623171 | Trim, Cabinet (top) (charcoal Sparkle) (Replaces: W11577753) |
|
$ 154.84 | |||||
| 7 | 2309230 | Contact, Mullion (top) |
|
$ 16.17 | |||||
| 2A | W10714135 | Trim, Cabinet (side) Right Hand (black) |
|
$ 364.25 | |||||
| 4A | W10672301 | Contact, Mullion Bottom (grey) |
|
$ 76.77 | |||||
| 7A | 2309231 | Contact, Mullion (bottom) |
|
$ 54.31 |
