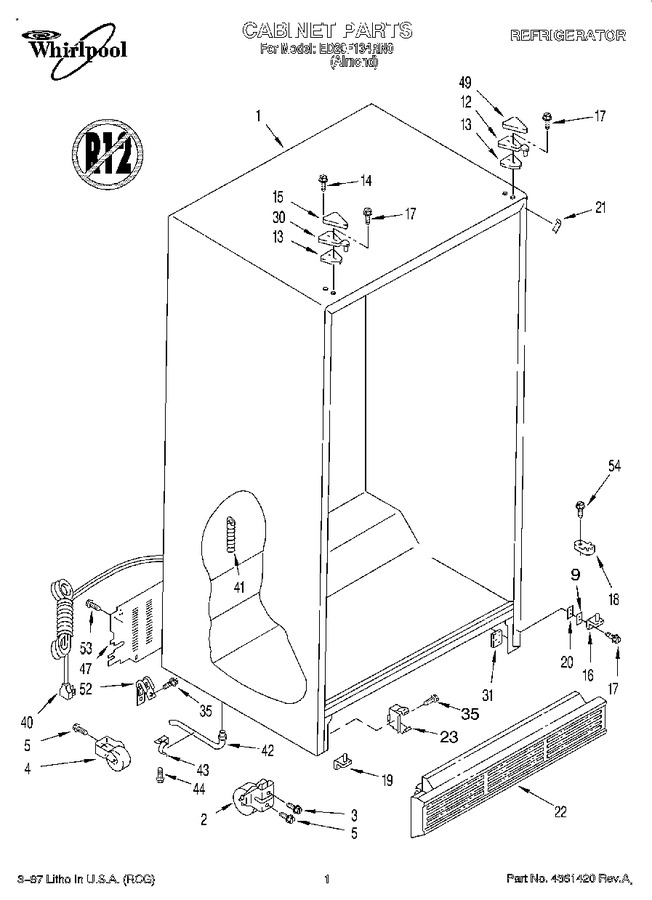

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	2152011		Front Roller (2)		Appelez-nous	-
3	489393		Screw		Appelez-nous	-
4	WPW10250570		Roller, Rear (2)   (Replaces: 981122)				$ 42.18
5	488454		Screw,		Appelez-nous	-
9	836196		Shim		Appelez-nous	-
12	1123514		Hinge Top (r.h.)		Appelez-nous	-
13	1123515		Shim, Hinge Top				$ 6.58
14	WP965173		Screw, Bind   (Replaces: 487869)			Immediately	$ 11.87
15	2150343		Hinge Cover		Appelez-nous	-
16	2151619		Hinge Bottom (r.h.)		Appelez-nous	-
17	489327		Screw, 10-32 X 23/32		Appelez-nous	-
18	WPW10329686		Door Closer, Lower Cam   (Replaces: 1115901)			Immediately	$ 5.90
19	2151620		Hinge Bottom (l.h.)		Appelez-nous	-
20	1129868		Spacer, Hinge		Appelez-nous	-
21	1110709		Filler, Wrapper		Appelez-nous	-
22	1129001		Grille		Appelez-nous	-
23	WP2155013		Clip, Grille (2)   (Replaces: 2155013)			Immediately	$ 8.11
30	1123510		Hinge, Top (l.h.)		Appelez-nous	-
31	2147310		Tap Plate (2)		Appelez-nous	-
35	WP489478		Screw   (Replaces: 489242)				$ 8.18
40	937360		Cord, Service		Appelez-nous	-
41	2155556		Drain Ferrule		Appelez-nous	-
42	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 32.90
43	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 11.28
44	WP489478		Screw   (Replaces: 489242)				$ 8.18
47	2161316		Cover, Unit		Appelez-nous	-
49	1119789		Hinge Cover (2)		Appelez-nous	-
52	549193		Clamp-service Cord				$ 14.06
53	WP489464		Screw, 8 X 1/2   (Replaces: 489337)			Immediately	$ 8.38
54	WP489399		Screw, 8-32 X 1/4   (Replaces: 489375)				$ 7.30
