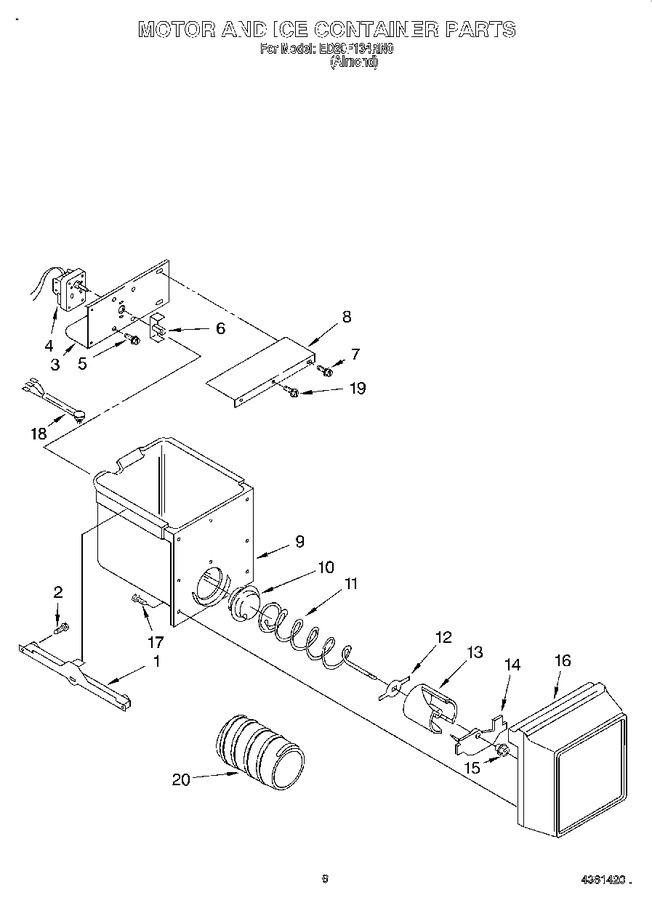

04 - Motor And Ice Container


05 - Refrigerator Door


06 - Freezer Door


07 - Dispenser Front


08 - Unit


09 - Airflow


10 - Control


11 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 139.41
1	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 130.12
2	718257		Screw, 8 X 1-3/8 (4)   (Replaces: 489100)		Appelez-nous	-
3	1116766		Bracket, Ice Dispenser		Appelez-nous	-
4	851152		Motor		Appelez-nous	-
5	303776		Screw, 8-32 X 5/16   (Replaces: 488906)		Appelez-nous	-
6	WPW10169511		Coupling, Motor   (Replaces: 983663)				$ 24.51
7	WP489478		Screw, 8 X 1/2   (Replaces: 489242)				$ 8.18
8	WPW10284487		Cover, Motor   (Replaces: 1115210)				$ 119.81
9	WP2196090		Ice Container   (Replaces: 2152705)				$ 214.84
10	W10749708		Coupling   (Replaces: 983668)				$ 27.44
11	1116764		Conveyor		Appelez-nous	-
12	4388736		Drive Bar   (Replaces: 946192)				$ 96.97
13	4388736		Drum   (Replaces: 946193)				$ 96.97
14	1115362		Baffle		Appelez-nous	-
15	946195		Nut, Bearing		Appelez-nous	-
16	2161254		Front Cover		Appelez-nous	-
17	WP488787		Screw, (8-18 X 1/2)   (Replaces: 488886)				$ 11.26
18	2149194		Wiring Assembly, Ice Dispenser		Appelez-nous	-
19	00487294		Screw, 8-32 X 3/8   (Replaces: 487294)				$ 175.09
20	4317870		Sleeve-auger   (Replaces: 2152021)				$ 136.02
