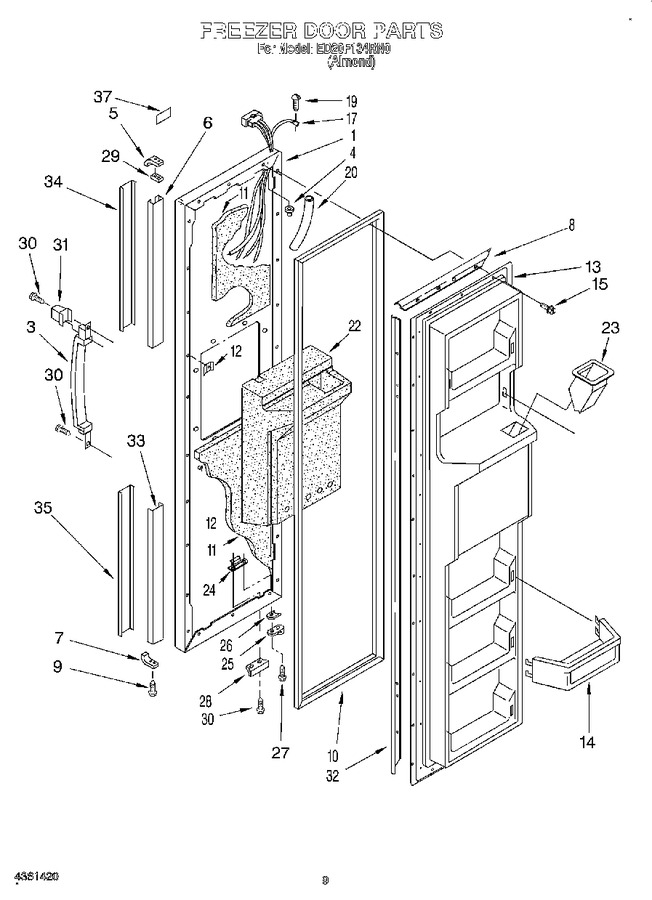

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2155884		Freezer, Door Panel (also Order Item 11)		Appelez-nous	-
3	2161269		Handle		Appelez-nous	-
4	509929		Cap, Hinge Sleeve		Appelez-nous	-
5	2160457		End Cap (top)		Appelez-nous	-
6	2154319		Track, Roll-top		Appelez-nous	-
7	2151819		End Cap (bottom)		Appelez-nous	-
8	1117767		Retainer, Gasket		Appelez-nous	-
9	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
10	2188405A		Door Gasket, Magnetic   (Replaces: 1129267)				$ 368.63
11	876029		Foam Insulation		Appelez-nous	-
12	WP939101		Screw Anchor (3)   (Replaces: 939101)				$ 7.88
13	1125649		Panel, Interior Door		Appelez-nous	-
14	2161275		Trim, Door Shelf (4)		Appelez-nous	-
15	WP489069		Screw, 7 X 1/2 (28)   (Replaces: 489101)			Immediately	$ 8.40
17	1118032		Harness, Door (includes Illustration 18)		Appelez-nous	-
19	WP489128		Screw   (Replaces: 488500)				$ 11.40
20	1119059		Tube, Door Wiring		Appelez-nous	-
22	1116821		Insulation, Dispenser		Appelez-nous	-
23	1109488		Chute, Ice		Appelez-nous	-
24	988402		Tap Plate		Appelez-nous	-
25	4318165		Door Closer, Upper Cam   (Replaces: 1115905)			Immediately	$ 29.74
26	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.96
27	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 8.40
28	1115906		Bracket, Door Stop		Appelez-nous	-
29	2160458		Shim		Appelez-nous	-
30	488549		Screw, 8 X 5/8		Appelez-nous	-
31	2156607		End Cap, Handle		Appelez-nous	-
32	1117766		Retainer, Gasket				$ 36.55
33	2154320		Track, Roll-bottom		Appelez-nous	-
34	2161271		Trim, Door-top		Appelez-nous	-
35	2161273		Trim, Door-bottom		Appelez-nous	-
37	2154377		Nameplate		Appelez-nous	-
