Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/A Liner (not A Serviceable Part) Appelez-nous -
3 2155603 Shelf Appelez-nous -
5 WP489478 Screw, 8 X 1/2   (Replaces: 489242) Special Order $ 8.18

6 2163981 Trim, Shelf Appelez-nous -
7 946355 Support, Stud (6) Appelez-nous -
8 946356 Stud, Front (3) Appelez-nous -
9 1106982 Stud, Rear (3) Appelez-nous -
10 1110779 Grommet, (6) Appelez-nous -
11 1115317 Stud (4) Appelez-nous -
13 1115383 Slide, Freezer Bin (2) Appelez-nous -
13 W10845583 Right Side   (Replaces: 1119293) Special Order $ 130.12

14 1106980 Shelf Appelez-nous -
15 2161258 Freezer Bin Appelez-nous -
16 487979 Screw, 8 X 1 (4) Appelez-nous -
17 2215823 Clip, Air Duct (2)   (Replaces: 842534) Special Order $ 10.94

20 2155572 Cover, Wiring Appelez-nous -
21 WP488729 Screw   (Replaces: 489176) In-Stock Immediately $ 8.28

22 W11566763 Fitting, Drain   (Replaces: 940139) In-Stock Immediately $ 53.45

23 2161252 Door, Ice Compartment Appelez-nous -
24 1115380 Slide, Ice Door Appelez-nous -
25 WP4387911 Switch, Rocker Arm   (Replaces: 851387) In-Stock Immediately $ 41.64


    View Diagram in Separate Window     Print Icon   Print Part List

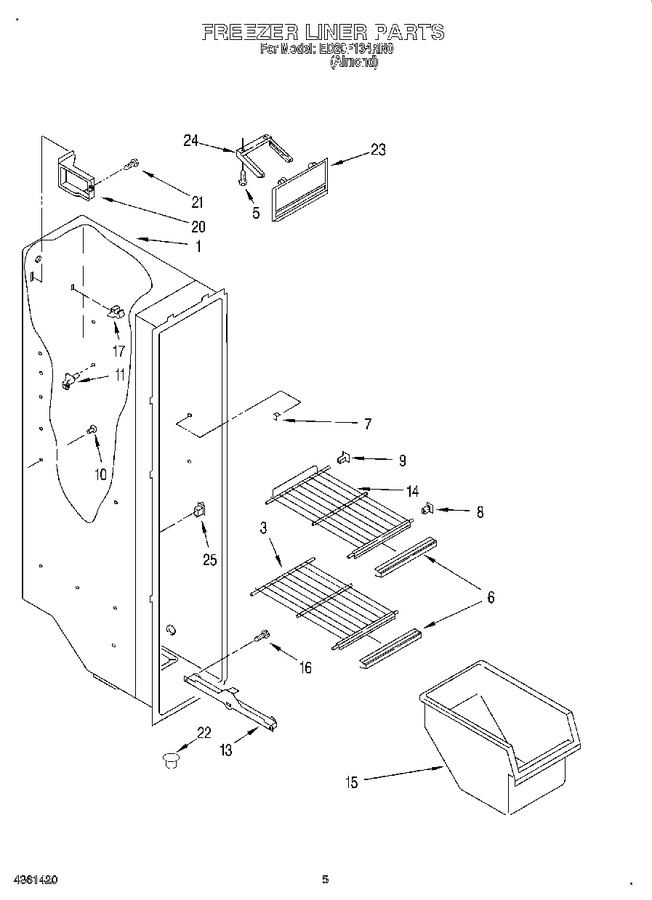

Diagram for ED20F134RN0
