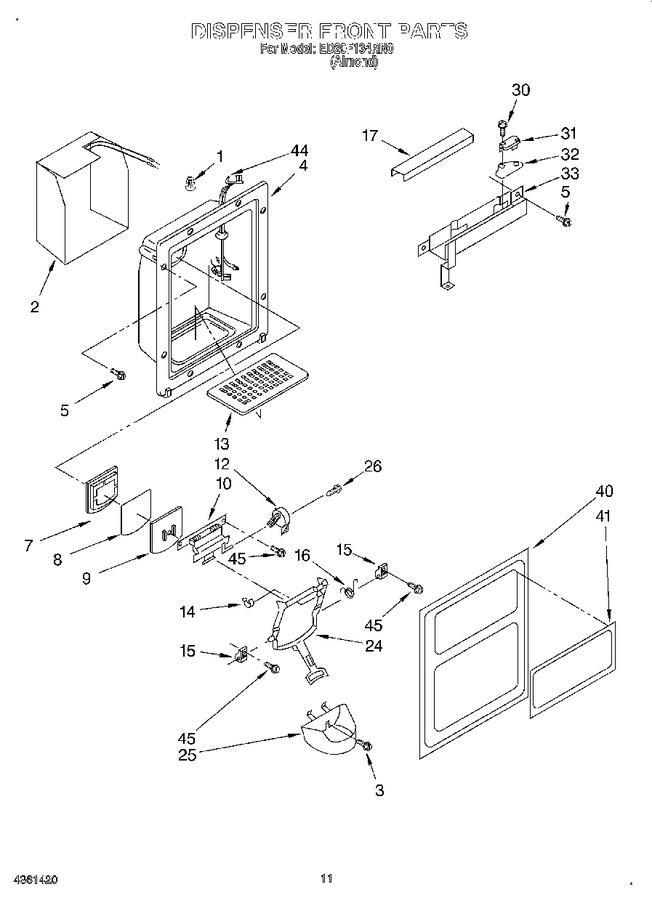

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	850145		Wire Connector		Appelez-nous	-
2	2154789		Heater, Dispenser		Appelez-nous	-
3	489197		Screw		Appelez-nous	-
4	1116820		Housing, Dispenser		Appelez-nous	-
5	W11693756		Screw 8 X 5/8 (10)   (Replaces: 488687)			Immediately	$ 14.76
7	983691		Gasket, Door				$ 6.61
8	987121		Shield, Ice Door				$ 5.91
9	983690		Door, Ice				$ 11.13
10	938669		Door Mechanism Assembly		Appelez-nous	-
12	WP1120581		Mechanism Delay   (Replaces: 1120581)				$ 223.72
13	983900		Grille, Overflow				$ 27.30
14	987917		Clip, Bearing (2)		Appelez-nous	-
15	983697		Bearing, Lever (2)		Appelez-nous	-
16	983696		Spring, Lever (2)				$ 21.26
17	984494		Shield, Wiring		Appelez-nous	-
24	1127421		Lever, Ice Dispenser		Appelez-nous	-
25	1119035		Guide, Ice		Appelez-nous	-
26	488316		Screw		Appelez-nous	-
30	489155		Screw, 4-40 X 1		Appelez-nous	-
31	814037		Switch (2)   (Replaces: 313125)				$ 94.88
32	984683		Insulator, Switch (2)		Appelez-nous	-
33	1116811		Bracket, Control		Appelez-nous	-
40	2161278		Front Cover, Housing		Appelez-nous	-
41	2161277		Overlay		Appelez-nous	-
44	1118374		Wiring Assembly, Door		Appelez-nous	-
45	WP3400906		Screw, 9-12 X 1/2   (Replaces: 489000)				$ 9.05
