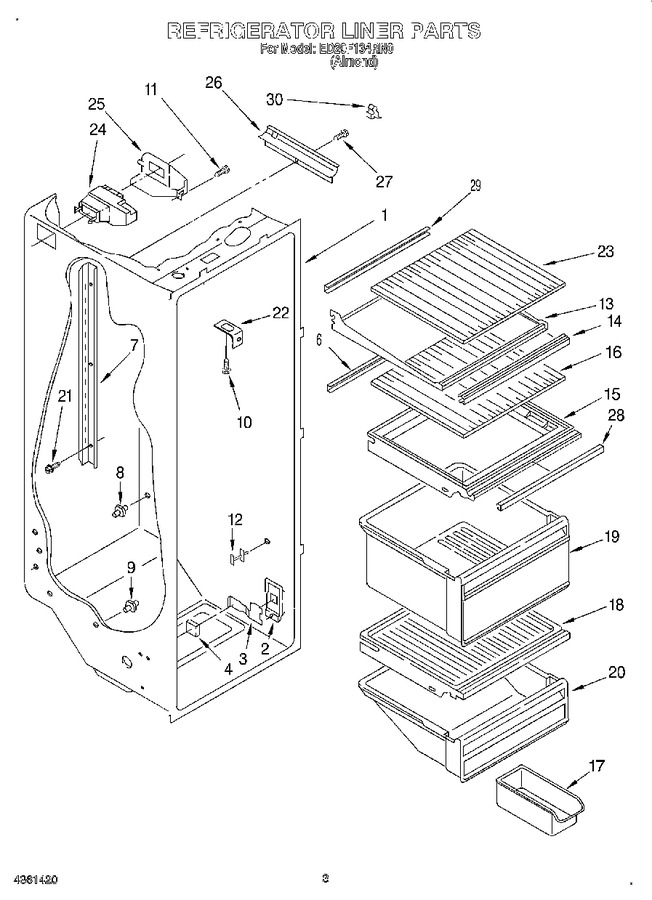

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	985468		Escutcheon, Meat Pan Control		Appelez-nous	-
3	984102		Slide, Meat Pan Control				$ 5.02
4	992358		Pad, Foam		Appelez-nous	-
6	1125594		Retainer, Shelf		Appelez-nous	-
7	1108433		Ladder, Shelf (2)		Appelez-nous	-
8	4388538		Stud, Rear (3)   (Replaces: 1110718)			Immediately	$ 32.85
9	4388538		Stud, Front   (Replaces: 2147997)			Immediately	$ 32.85
10	WP488488		Screw, 8 X 15/16   (Replaces: 489290)				$ 8.52
11	WP489478		Screw   (Replaces: 489242)				$ 8.18
12	WP2149540		Stud, Front   (Replaces: 2149540)				$ 10.96
13	2148087		Shelf, Cantilever (3)		Appelez-nous	-
14	2163984		Trim, Shelf (3)		Appelez-nous	-
15	WP1126289		Crisper Cover   (Replaces: 2161259)				$ 190.80
16	2161295		Glass, Shelf		Appelez-nous	-
17	WP982704		Container   (Replaces: 2161264)				$ 32.55
18	1116742		Meat Pan Cover				$ 78.02
19	2161262		Pan, Crisper		Appelez-nous	-
20	2164037		Meat Pan		Appelez-nous	-
21	WP488729		Screw, 8 X 1/2   (Replaces: 487539)			Immediately	$ 8.28
22	WP2256085		Bracket, Retainer   (Replaces: 1123919)				$ 36.10
23	2161151		Glass, Cantilever Shelf (3)		Appelez-nous	-
24	WPW10151374		Air Diffuser Assembly   (Replaces: 2161251)			Immediately	$ 104.77
25	2152019		Cover, Air Diffuser				$ 90.33
26	2150330		Cover, Conduit		Appelez-nous	-
27	W10759522		Screw, 8 X 3/4   (Replaces: 486298)				$ 8.24
28	2161260		Trim, Crisper Cover		Appelez-nous	-
29	1125594		Retainer, Shelf (3)		Appelez-nous	-
30	2215823		Clip, Air Duct   (Replaces: 842534)				$ 10.94
NI	WP489478		Screw, 8-15 X 1/2   (Replaces: 489242)				$ 8.18

    View Diagram in Separate Window       Print Part List
