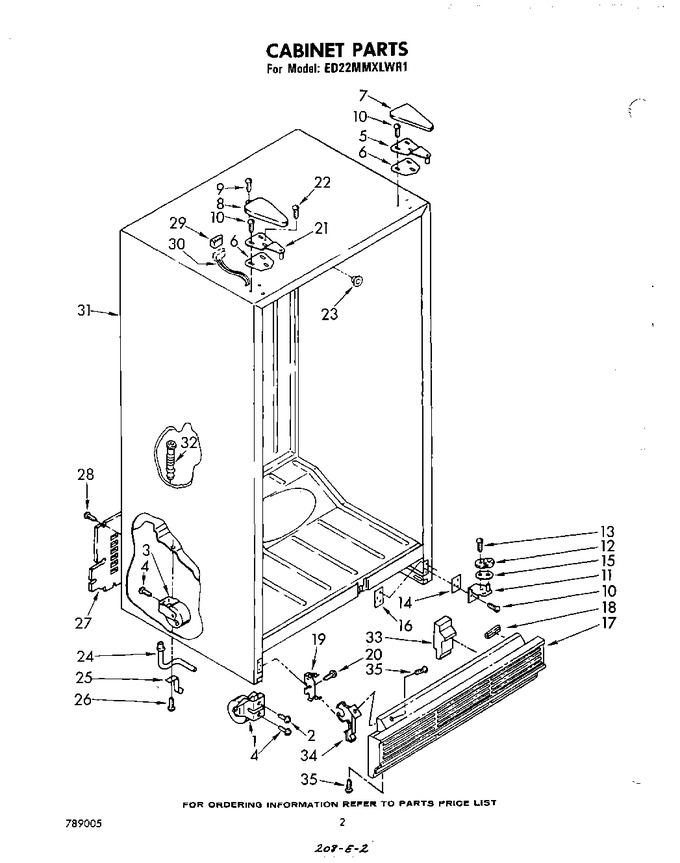

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	981127		Roller, Front (2)		Appelez-nous	-
2	488681		Screw, 5/16-24 X 1		Appelez-nous	-
3	WPW10250570		Roller Assembly, Rear (2)   (Replaces: 981122)				$ 40.17
4	488454		Screw, 1/4-28 X 1/2 (4)		Appelez-nous	-
5	842039		Hinge, Top		Appelez-nous	-
6	836192		Shim, Top Hinge		Appelez-nous	-
7	842010		Hinge Cover (white)		Appelez-nous	-
7	989897		Hinge Cover (new Avocado)		Appelez-nous	-
7	989896		Hinge Cover (golden Harvest)		Appelez-nous	-
7	989895		Hinge, Cover (coffee)		Appelez-nous	-
7	989194		Hinge Cover (almond)		Appelez-nous	-
8	987191		Hinge Cover (white)		Appelez-nous	-
8	989884		Hinge Cover (coffee)		Appelez-nous	-
8	989885		Hinge Cover (golden Harvest)		Appelez-nous	-
8	989886		Hinge Cover (new Avocado)		Appelez-nous	-
8	989887		Hinge Cover (almond)		Appelez-nous	-
9	488915		Screw, 6-32 X 1/2		Appelez-nous	-
10	488949		Screw, 12-14 X 3 (repair)		Appelez-nous	-
10	WP999367		Screw, 10-32 X 23/32   (Replaces: 489105)				$ 7.86
11	986763		Hinge Bottom (r.h)		Appelez-nous	-
11	986764		Hinge Bottom (l.h)		Appelez-nous	-
12	WPW10329686		Closer, Door (2)   (Replaces: 986759)			Immediately	$ 5.43
13	488913		Screw (repair)		Appelez-nous	-
13	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 487983)				$ 7.34
14	836196		Shim, Bottom Hinge		Appelez-nous	-
15	987179		Shim, Door Closer (0.30)		Appelez-nous	-
16	836162		Plate, Tap		Appelez-nous	-
17	944239		Exterior Grille (white)		Appelez-nous	-
17	944243		Exterior Grille (almond)		Appelez-nous	-
17	944242		Exterior Grille (new Avocado)		Appelez-nous	-
17	944241		Exterior Grille (golden Harvest)		Appelez-nous	-
17	944240		Exterior Grille (coffee)		Appelez-nous	-
18	546131		Bumper, Grille (2)		Appelez-nous	-
19	989068		Support, Grille (2)		Appelez-nous	-
20	W11624204		Screw, 8 X 1/2 (2)   (Replaces: 486194)				$ 14.02
21	983608		Hinge Assembly Top, L.s.		Appelez-nous	-
22	WP488234		Screw, 8-32 X 5/32   (Replaces: 488889)				$ 6.74
23	839989		Grommet		Appelez-nous	-
24	841646		Extension Fitting		Appelez-nous	-
25	841648		Clip, Drain		Appelez-nous	-
26	488978		Screw, 8-15 X 3/8		Appelez-nous	-
27	850457		Cover, Unit Compartment		Appelez-nous	-
28	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 7.67
29	851648		Receptacle, Head		Appelez-nous	-
30	482553		Harness, Wiring (6`` Leads) (includes Illus. 29)		Appelez-nous	-
31	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
32	836068		Drain Fitting		Appelez-nous	-
33	836372		Insert, Baffle		Appelez-nous	-
34	WP944224		Grille Support   (Replaces: 944224)				$ 7.56
35	489085		Screw, 8-22 X 5/16 (4)		Appelez-nous	-
