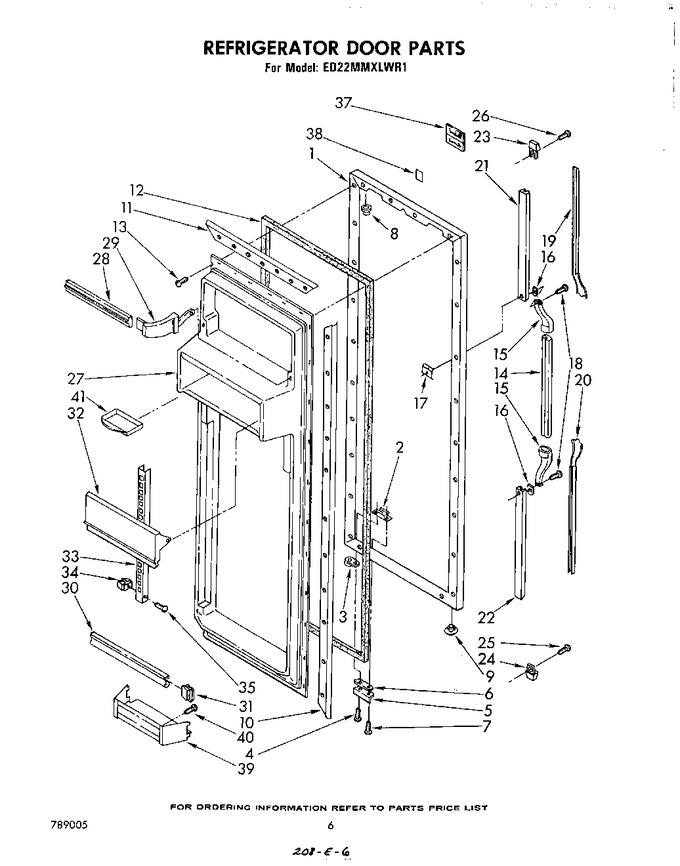

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 943197 | Refrigerator, Door Panel (white) |
|
- | |||||
| 1 | 943198 | Refrigerator, Door Panel (coffee) |
|
- | |||||
| 1 | 943199 | Refrigerator, Door Panel (golden Harvest) |
|
- | |||||
| 1 | 943200 | Refrigerator, Door Panel (avocado) |
|
- | |||||
| 1 | 943201 | Refrigerator, Door Panel (almond) |
|
- | |||||
| 2 | 988402 | Tap Plate |
|
- | |||||
| 3 | 4318165 | Door, Cam Upper (Replaces: 986758) |
|
Immediately | $ 29.74 | ||||
| 4 | WP489069 | Screw, 8 X 1/2 (Replaces: 488938) |
|
Immediately | $ 8.40 | ||||
| 5 | 988420 | Bracket, Door Stop |
|
- | |||||
| 6 | 988421 | Shim |
|
- | |||||
| 7 | 488549 | Screw, 8 X 5/8 |
|
- | |||||
| 8 | 509929 | Cap, Hinge |
|
- | |||||
| 9 | 989197 | Hole Plug (almond) |
|
- | |||||
| 9 | 534927 | Hole Plug (white) |
|
- | |||||
| 9 | 989880 | Hole, Plug (avocado) |
|
- | |||||
| 9 | 989879 | Hole Plug (golden Harvest) |
|
- | |||||
| 9 | 989878 | Hole, Plug (coffee) |
|
- | |||||
| 10 | 836120 | Retainer, Side |
|
- | |||||
| 11 | 836121 | Retainer, Top & Bottom |
|
- | |||||
| 12 | 2188404A | Door, Gasket Magnetic (Replaces: 943220) |
|
$ 269.26 | |||||
| 13 | WP489069 | Screw, No.7 X 1/2 (Replaces: 489089) |
|
Immediately | $ 8.40 | ||||
| 13 | WP681414 | Screw ((repair)) (Replaces: 488552) |
|
Immediately | $ 8.47 | ||||
| 14 | 943275 | Handle Center (golden Harvest) |
|
- | |||||
| 14 | 943276 | Handle, Center (almond) |
|
- | |||||
| 14 | 943274 | Handle Center (avocado) |
|
- | |||||
| 14 | 943273 | Handle Center (white & Coffee) |
|
- | |||||
| 15 | 935103 | Center End Cap (2) |
|
- | |||||
| 16 | 935075 | Shim, Handle Center (2) |
|
- | |||||
| 17 | 941242 | Screw Anchor (2) |
|
- | |||||
| 18 | WP488729 | Screw, 8 X 1/2 (4) (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 19 | 941955 | Insert, Handle |
|
- | |||||
| 20 | 943277 | Insert, Handle |
|
- | |||||
| 21 | 941954 | Retainer Insert |
|
- | |||||
| 22 | 942081 | Retainer, Insert |
|
- | |||||
| 23 | 941259 | End Cap |
|
- | |||||
| 24 | 935106 | End Cap Insert |
|
- | |||||
| 25 | 488915 | Screw, 6-32 X 1/2 |
|
- | |||||
| 26 | 489075 | Screw, 10-32 X 3/8 |
|
- | |||||
| 27 | 944372 | Interior Door, Panel |
|
- | |||||
| 28 | 988746 | Trim, Door Shelf |
|
- | |||||
| 29 | 943125 | Retainer, Door Trim |
|
- | |||||
| 30 | 988747 | Trim Door Shelf |
|
- | |||||
| 31 | 943138 | Retainer Door Trim |
|
- | |||||
| 32 | 935352 | Compartment Door |
|
- | |||||
| 33 | 983804 | Shelf Ladder |
|
- | |||||
| 34 | 537095 | Clip, Expansion |
|
- | |||||
| 35 | WP488729 | Screw, 8 X 1/2 (Replaces: 488320) |
|
Immediately | $ 8.28 | ||||
| 37 | 945108 | Insert, Nameplate |
|
- | |||||
| 38 | 991259 | Tape Strip |
|
- | |||||
| 39 | 944373 | Door Shelf, Cantilever |
|
- | |||||
| 40 | 488929 | Screw, 4-20 X 3/16 |
|
- | |||||
| 41 | 520747 | Tray, Butter |
|
- |
