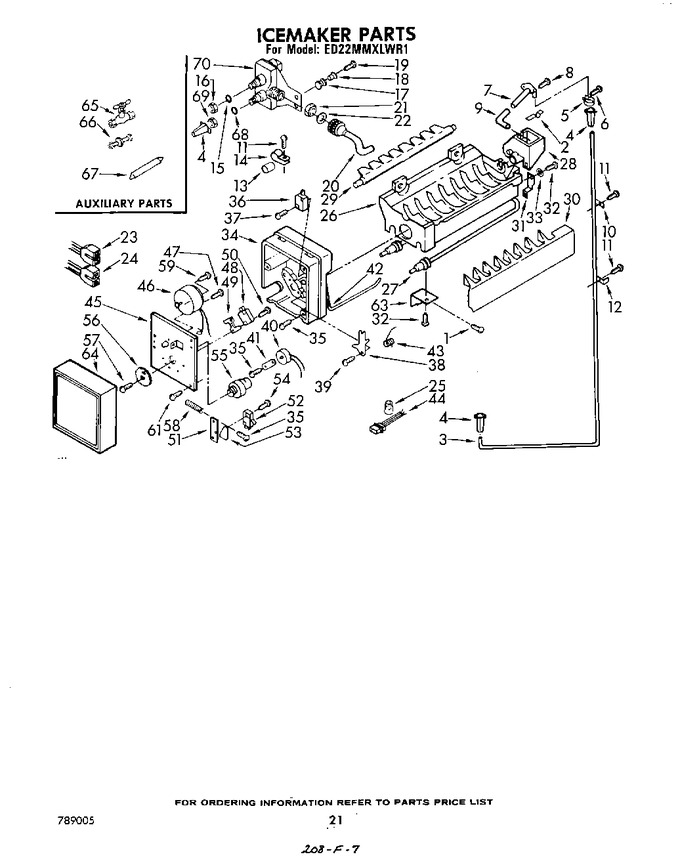

12 - Icemaker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-12 X 3/8   (Replaces: 488552)			Immediately	$ 8.47
2	652604		Clip		Appelez-nous	-
3	W10823511		Water Tube   (Replaces: 987053)			Immediately	$ 32.41
4	4387491		Insert, Plastic Tube (2)   (Replaces: 841707)				$ 8.23
5	WP488878		Tube Clamp   (Replaces: 488878)				$ 12.18
6	WP965173		Screw 8 X 3/8   (Replaces: 487415)			Immediately	$ 11.87
7	WP2196157		Fitting, Water Tube   (Replaces: 983990)			Immediately	$ 12.59
8	WP98165		Screw, 8 X 5/8 (2)   (Replaces: 488401)				$ 8.57
9	983656		Tube, Water Inlet		Appelez-nous	-
10	WP488366		Tube Clamp   (Replaces: 488366)				$ 11.92
11	WP489069		Screw, 8 X 1/2 (3)   (Replaces: 488645)			Immediately	$ 8.40
12	836472		Tube Clamp (2)		Appelez-nous	-
13	WP2158826		Dampener   (Replaces: 836074)				$ 1.82
14	510716		Tube Clamp		Appelez-nous	-
15	488794		``o`` Ring Seal		Appelez-nous	-
16	WP627018		Nut, 1/4 Diameter   (Replaces: 488810)				$ 11.51
17	510723		Grommet (2)		Appelez-nous	-
18	510906		Eyelet Spacer (2)		Appelez-nous	-
19	W11693756		Screw, 8 X 5/8 (2)   (Replaces: 488687)			Immediately	$ 14.76
20	836200		Tube, Inlet		Appelez-nous	-
21	537588		Nut, Valve		Appelez-nous	-
22	WP16123		Washer   (Replaces: 488292)				$ 8.16
23	548734		Wiring, Water Valve		Appelez-nous	-
24	850564		Wiring, Dispenser Valve		Appelez-nous	-
25	227991		Connector Wire		Appelez-nous	-
26	627170		Mold & Heater Assembly (includes Illus. 27)		Appelez-nous	-
27	625843		Heater, Mold		Appelez-nous	-
28	625707		Bearing & Inlet		Appelez-nous	-
29	WP627843		Ejector   (Replaces: 627169)				$ 87.78
30	627168		Stripper, Ice		Appelez-nous	-
31	627409		Bracket, Shut-off Arm		Appelez-nous	-
32	488896		Screw, 8-16 X 3/8		Appelez-nous	-
33	627435		Fastener, Springrip		Appelez-nous	-
34	625827		Support		Appelez-nous	-
35	488372		Screw, 8-32 X 1 (4)		Appelez-nous	-
36	625851		Switch, S.p.d.t.		Appelez-nous	-
37	488360		Screw, 4-24 X 3/4		Appelez-nous	-
38	625830		Lever, Arm		Appelez-nous	-
39	627199		Screw, Shoulder		Appelez-nous	-
40	627206		Thermostat (alternate)		Appelez-nous	-
40	627047		Thermostat		Appelez-nous	-
41	625829		Clamp, Thermostat		Appelez-nous	-
42	627484		Arm, Shut-off		Appelez-nous	-
43	625832		Spring, Shut-off Arm		Appelez-nous	-
44	627357		Wiring Harness		Appelez-nous	-
45	625833		Plate, Mounting		Appelez-nous	-
46	625846		Motor		Appelez-nous	-
46	627106		Motor (alternate)		Appelez-nous	-
47	488361		Screw (use W/625846 Motor)		Appelez-nous	-
47	488622		Screw (use W/ 627106 Motor)		Appelez-nous	-
48	627720		Switch, S.p.d.t.		Appelez-nous	-
49	625834		Spacer, Holding Switch				$ 7.99
50	488361		Screw, 4-40 X 1 (2)		Appelez-nous	-
51	625836		Plate, Valve		Appelez-nous	-
52	625947		Switch, S.p.s.t.		Appelez-nous	-
53	625835		Insulator		Appelez-nous	-
54	00488362		Screw, 4-40 X 3/4   (Replaces: 488362)				$ 144.58
55	625913		Cam		Appelez-nous	-
56	625914		Gear		Appelez-nous	-
57	488957		Screw		Appelez-nous	-
58	627163		Spring		Appelez-nous	-
59	488542		Screw, 8-32 X 1/4		Appelez-nous	-
61	WP488787		Screw, (8-18 X 1/2)   (Replaces: 488886)				$ 11.26
63	WP2256087		Bracket   (Replaces: 625910)				$ 97.65
64	627356		Cover		Appelez-nous	-
65	541157		Valve, Shut-off		Appelez-nous	-
66	512503		Union, 1/4`` X 3/16``		Appelez-nous	-
67	978488		Filter Kit		Appelez-nous	-
68	00753257		Ring, ``o``   (Replaces: 488819)			Immediately	$ 295.49
69	488795		Nut, 1/4 Diameter		Appelez-nous	-
70	4318046		Valve, Solenoid   (Replaces: 627431)			Immediately	$ 92.87
