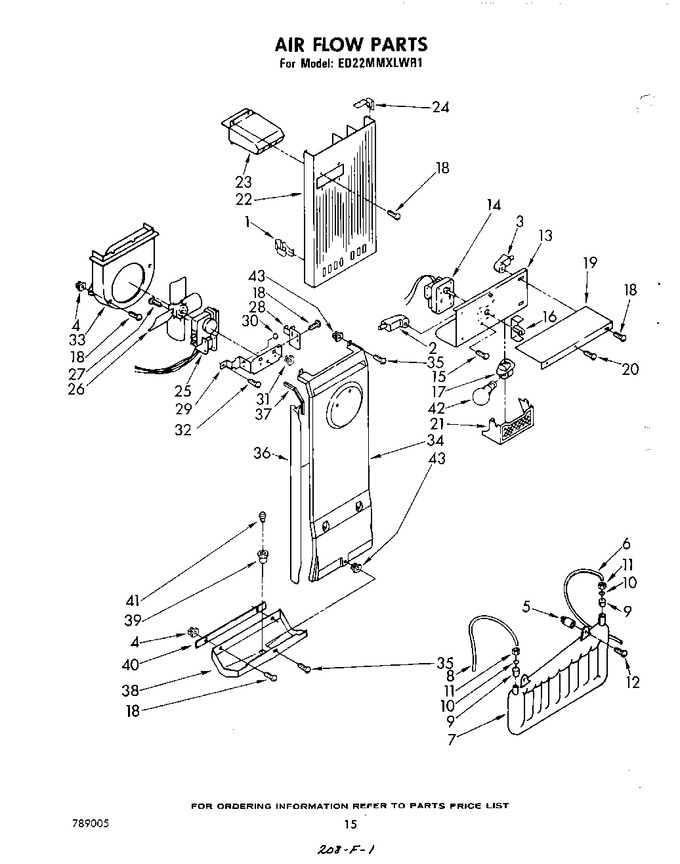

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2215823 | Clip, Air Duct (2) (Replaces: 842534) |
|
$ 10.94 | |||||
| 2 | 983660 | Stud Support (2) |
|
- | |||||
| 3 | 992720 | Stud Support (2) |
|
- | |||||
| 4 | 842339 | Grommet |
|
- | |||||
| 5 | 843436 | Grom\met,\ Reservoir Mounting (3) |
|
- | |||||
| 6 | W10823511 | Tube, Water (Replaces: 653499) |
|
Immediately | $ 32.41 | ||||
| 7 | WP2256126 | Water Reservoir (Replaces: 839912) |
|
$ 177.29 | |||||
| 8 | W10823511 | Tube, Water (Replaces: 937681) |
|
Immediately | $ 32.41 | ||||
| 9 | 4387491 | Insert, Tube (Replaces: 841707) |
|
$ 8.23 | |||||
| 10 | 00753257 | ``o`` Ring Seal (Replaces: 488819) |
|
Immediately | $ 295.49 | ||||
| 11 | 488795 | Nut, 1/4 Diameter |
|
- | |||||
| 12 | 488775 | Screw, 8 X 1/2 (3) |
|
- | |||||
| 13 | 938535 | Bracket, Dispenser Motor |
|
- | |||||
| 14 | 851152 | Motor, Dispenser |
|
- | |||||
| 15 | 303776 | Screw, 8-32 X 5/16 (4) (Replaces: 488906) |
|
- | |||||
| 16 | WPW10169511 | Motor, Coupling (Replaces: 983663) |
|
$ 24.51 | |||||
| 17 | 4387478 | Socket Assembly (Replaces: 851067) |
|
Immediately | $ 115.67 | ||||
| 18 | W11624204 | Screw, 8 X 1/2 (4) (Replaces: 486194) |
|
$ 14.72 | |||||
| 19 | 938533 | Cover, Ice Dispenser |
|
- | |||||
| 20 | 00487294 | Screw, 8-32 X 3/8 (Replaces: 487294) |
|
$ 175.09 | |||||
| 21 | 983359 | Light Dispenser |
|
- | |||||
| 22 | 938591 | Duct, Air |
|
- | |||||
| 23 | 983652 | Air Deflector |
|
- | |||||
| 24 | 987954 | Baffle, Air |
|
- | |||||
| 25 | SM999 | Motor, Fan (Replaces: 938124) |
|
Immediately | $ 30.26 | ||||
| 25 | SM999 | Fan, Motor (alternate) (Replaces: 941601) |
|
Immediately | $ 30.26 | ||||
| 26 | 839859 | Blade, Fan |
|
- | |||||
| 27 | 00487887 | Screw, 3-48 X 1/4 (2) (Replaces: 487887) |
|
$ 244.80 | |||||
| 28 | 548263 | Bracket (double) |
|
- | |||||
| 29 | 938224 | Bracket (single) |
|
- | |||||
| 30 | 548268 | Grommet (3) |
|
- | |||||
| 31 | 538449 | Screw, Grommet (2) |
|
- | |||||
| 32 | WP489069 | Screw, 8 X 1/2 (2) (Replaces: 488772) |
|
Immediately | $ 8.40 | ||||
| 33 | 983650 | Scroll Fan |
|
- | |||||
| 34 | 938573 | Cover, Evaporator |
|
- | |||||
| 35 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 488992) |
|
Immediately | $ 8.28 | ||||
| 36 | 939674 | Gasket, Evaporator |
|
- | |||||
| 37 | 987178 | Gasket, Evaporator Top |
|
- | |||||
| 38 | 842404 | Drain Pan |
|
- | |||||
| 39 | 841770 | Fitting, Drain Pan |
|
- | |||||
| 40 | 845564 | Gasket, Drain Pan |
|
- | |||||
| 41 | 842259 | Cap, Drain |
|
- | |||||
| 42 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 43 | 981616 | Grommet |
|
- |
