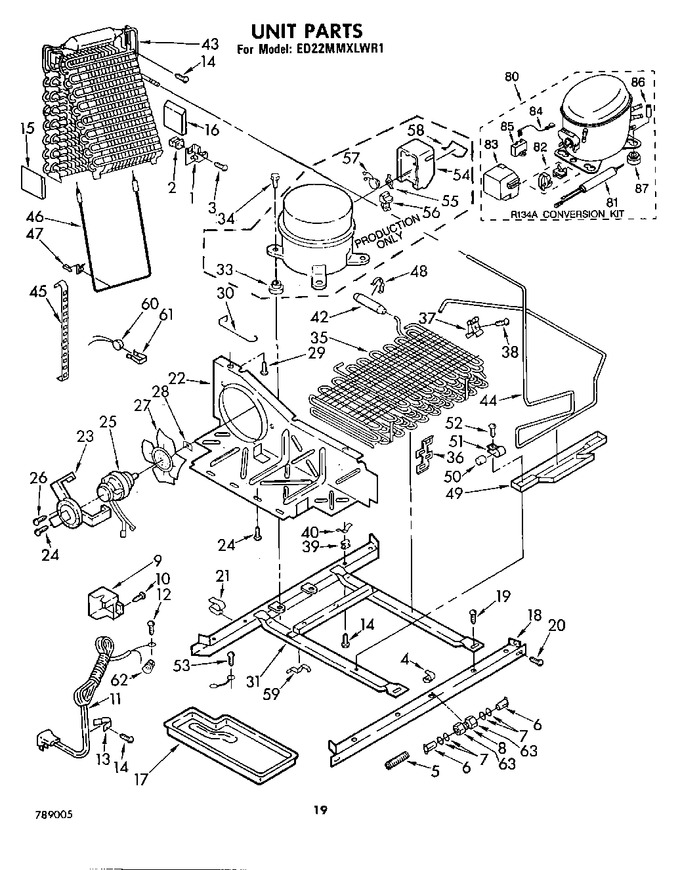

11 - Unit


12 - Icemaker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	842436		Support, Evaporator		Appelez-nous	-
2	944454		Screw, Grommet		Appelez-nous	-
3	WP681414		Screw, 10-12 X 3/8   (Replaces: 489049)			Immediately	$ 8.47
4	934011		Clip, Water Tube (2)		Appelez-nous	-
5	983659		Spring, Tube Forming		Appelez-nous	-
6	4387491		Insert, Plastic Tube (2)   (Replaces: 841707)				$ 8.23
7	488794		``o`` Ring Seal (4)		Appelez-nous	-
8	WP4211117		Union   (Replaces: 489098)				$ 10.46
9	850482		Box, Junction		Appelez-nous	-
10	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 8.28
11	850626		Cord, Service		Appelez-nous	-
12	488474		Screw, 8-32 X 3/8		Appelez-nous	-
13	549193		Clamp-service Cord				$ 14.06
14	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
15	652985		Baffle, Evaporator		Appelez-nous	-
16	849335		Air Baffle		Appelez-nous	-
17	849331		Tray, Evaporator		Appelez-nous	-
18	548662		Front, Rail		Appelez-nous	-
19	488454		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-
20	489035		Screw (repair)		Appelez-nous	-
20	489340		Screw, 5/16-18 X 5/8 (4)   (Replaces: 488683)		Appelez-nous	-
21	548745		Clip, Wire (2)		Appelez-nous	-
22	850391		Air Baffle		Appelez-nous	-
23	548695		Bracket, Motor		Appelez-nous	-
24	488624		Screw, 8 X 3/8 (7)		Appelez-nous	-
25	833697		Fan, Motor   (Replaces: 938164)			Immediately	$ 88.15
26	488868		Screw, 8-36 X 3/8 (3)		Appelez-nous	-
27	989524		Fan, Blade		Appelez-nous	-
28	WP486692		Speednut, 1/4-20   (Replaces: 486692)				$ 8.43
29	488978		Screw, 8-15 X 3/8		Appelez-nous	-
30	850156		Guard, Fan		Appelez-nous	-
31	850381		Frame		Appelez-nous	-
33	547283		Grommet (4)		Appelez-nous	-
34	488400		Screw, 1/4-28 X 1`` (4)		Appelez-nous	-
35	481851		Condenser & Precooler Assembly		Appelez-nous	-
36	987210		Spacer Condenser		Appelez-nous	-
37	510414		Clip, Tube		Appelez-nous	-
38	WP488787		Screw, 8 X 1/2   (Replaces: 487981)				$ 11.26
39	548737		Grommet Mounting		Appelez-nous	-
40	548738		Clamp, Mounting		Appelez-nous	-
42	W10843121		Drier   (Replaces: 978246)			Immediately	$ 57.13
43	850383		Evaporator		Appelez-nous	-
44	938027		Exchanger, Heat		Appelez-nous	-
45	850568		Heat Shield (2)		Appelez-nous	-
46	WP549433		Heater, Defrost   (Replaces: 934445)				$ 175.73
47	549419		Heater, Clamp (4)		Appelez-nous	-
48	548508		Drier, Clamp		Appelez-nous	-
49	989269		Pan, Drip		Appelez-nous	-
50	510769		Dampener (2)		Appelez-nous	-
51	510716		Tube Clamp (2)		Appelez-nous	-
52	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488197)				$ 22.22
53	303776		Screw, 8-32 X 5/16 (2)   (Replaces: 488879)		Appelez-nous	-
54	549505		Relay, Case		Appelez-nous	-
55	549086		Overload Spring		Appelez-nous	-
56	989509		Relay		Appelez-nous	-
57	989518		Overload		Appelez-nous	-
58	549342		Spring		Appelez-nous	-
59	548744		Clip (2)		Appelez-nous	-
60	WP4387489		Defrost, Bimetal   (Replaces: 934424)				$ 108.99
61	513584		Clamp		Appelez-nous	-
62	227991		Wire Connector		Appelez-nous	-
63	WP245183		Nut, Ball Sleeve   (Replaces: 487857)				$ 8.84
80	4388009		Compressor (includes Items 81, 82, 83, 84, 85, 86, & 87) Also Order		Appelez-nous	-
80	876765		Tube Kit			Immediately	$ 90.65
81	W10843121		Drier   (Replaces: 4387019)			Immediately	$ 57.13
82	W11239930		Overload/relay Asy.   (Replaces: 4387871)				$ 156.49
83	WP2162358		Cover, Terminal   (Replaces: 4387731)				$ 95.29
84	WP2172890		Wire, Capacitor   (Replaces: 2172890)				$ 8.51
85	WP4387764		Capacitor   (Replaces: 4387764)				$ 185.89
86	4387559		Sleeve		Appelez-nous	-
87	978030		Valve, Access (3/4``)				$ 137.25
87	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
87	WP4387558		Grommet   (Replaces: 4387558)				$ 7.30
87	978026		Valve, Access (5/16``)			Immediately	$ 134.49
87	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
87	978028		Valve, Access (1/2)		Appelez-nous	-
87	978029		Valve Access (5/8``)				$ 93.85
