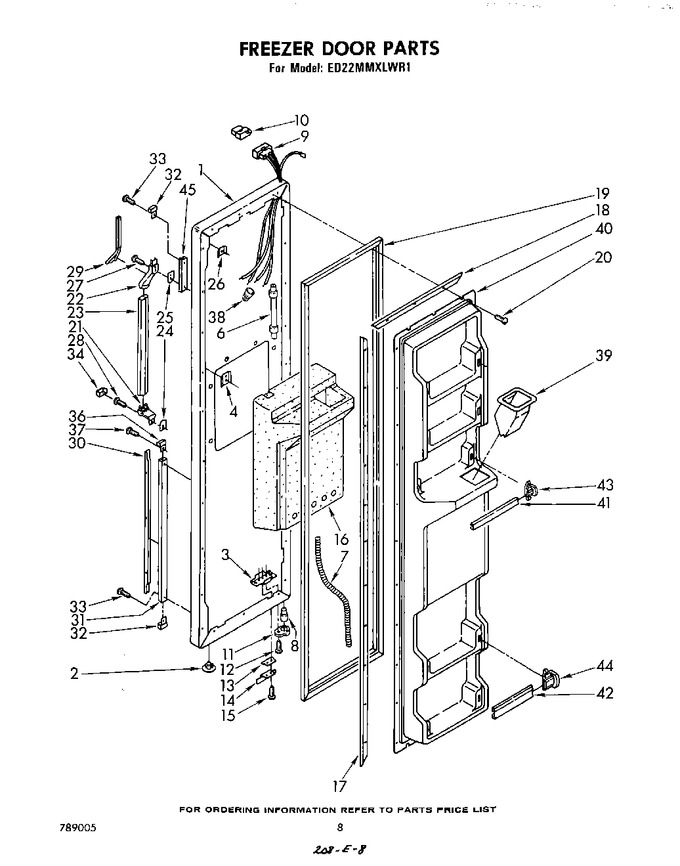

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	945025		Door, Freezer (white)		Appelez-nous	-
1	945026		Door, Freezer (coffee)		Appelez-nous	-
1	945027		Door, Freezer (golden Harvest)		Appelez-nous	-
1	945028		Door, Freezer (new Avocado)		Appelez-nous	-
1	945029		Door, Freezer (almond)		Appelez-nous	-
2	534927		Plug, Hole		Appelez-nous	-
3	988402		Tap Plate		Appelez-nous	-
4	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.50
6	937786		Tube, Door Wiring		Appelez-nous	-
7	939887		Tube, Door Wiring		Appelez-nous	-
8	939886		Seal, Hinge Pin		Appelez-nous	-
9	851373		Plug, Crossover (includes Illus. 10)		Appelez-nous	-
10	851649		Connector, Plug		Appelez-nous	-
11	4318165		Door, Closer   (Replaces: 986758)			Immediately	$ 29.74
12	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 7.86
13	988421		Shim		Appelez-nous	-
14	988420		Bracket, Door Stop		Appelez-nous	-
15	488549		Screw, 8 X 5/8		Appelez-nous	-
15	488930		Screw (repair)		Appelez-nous	-
16	938649		Insulation, Dispenser		Appelez-nous	-
17	836120		Retainer, Side (2)		Appelez-nous	-
18	836122		Retainer, Top & Bottom (2)		Appelez-nous	-
19	2188405A		Gasket, Door   (Replaces: 943221)				$ 368.63
20	WP489069		Screw, 8 X 1/2   (Replaces: 489089)			Immediately	$ 7.86
20	WP681414		Screw, 10-12 X 3/8   (Replaces: 488552)			Immediately	$ 7.85
21	935105		End, Cap Handle				$ 32.80
22	935103		Center, End Cap		Appelez-nous	-
23	945039		Handle, Center (white, Coffee)		Appelez-nous	-
23	945040		Handle, Center (new Avocado)		Appelez-nous	-
23	945041		Handle, Center (golden Harvest)		Appelez-nous	-
23	945042		Handle, Center (almond)		Appelez-nous	-
24	935076		Shim, Handle End		Appelez-nous	-
25	935075		Shim, End Center		Appelez-nous	-
26	941242		Screw Anchor		Appelez-nous	-
27	WP488729		Screw, 8 X 1/2 (2)   (Replaces: 487909)			Immediately	$ 7.79
28	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 7.79
29	941955		Insert, Handle		Appelez-nous	-
30	942082		Insert, Handle Extension		Appelez-nous	-
31	942081		Retainer, Insert		Appelez-nous	-
32	941259		End Cap		Appelez-nous	-
33	489075		Screw, 10-32 X 5/8		Appelez-nous	-
34	987873		Cover, End Cap		Appelez-nous	-
36	935106		End Cap, Insert Retainer		Appelez-nous	-
37	488915		Screw, 6-32 X 1/2		Appelez-nous	-
38	227991		Connector, Screw		Appelez-nous	-
39	944472		Chute, Ice		Appelez-nous	-
40	945031		Interior Door Panel		Appelez-nous	-
41	939773		Door, Shelf Trim		Appelez-nous	-
42	942071		Shelf, Trim (4)		Appelez-nous	-
43	943127		Door, Retainer (2)		Appelez-nous	-
44	943125		Door, Retainer (8)		Appelez-nous	-
45	941954		Retainer Insert		Appelez-nous	-
