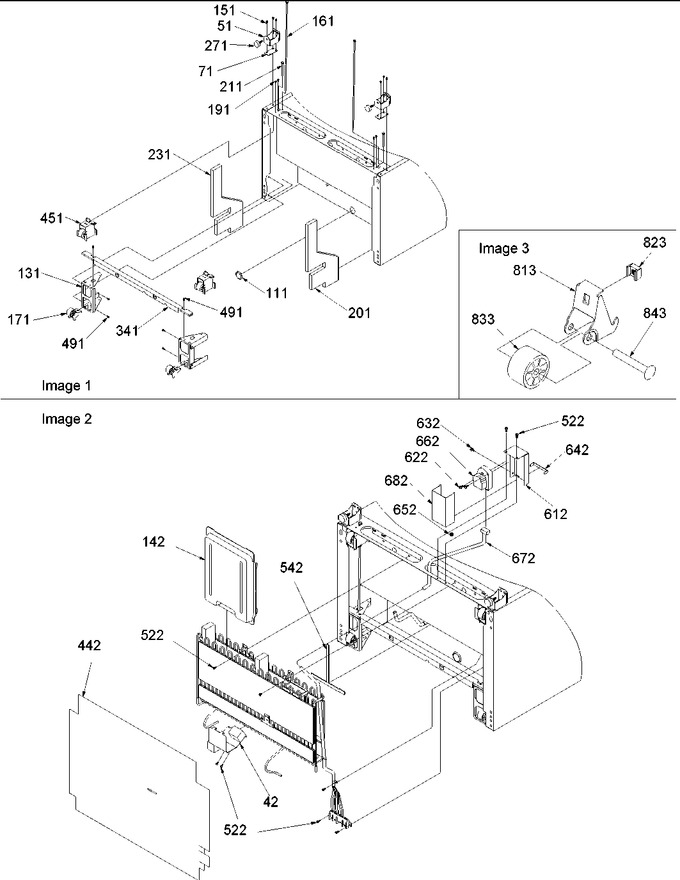

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 42 | 12443701 | Assy,cond Coil Hgr |
|
- | |||||
| 51 | 12050703 | E Bot Hinge E-ct |
|
- | |||||
| 71 | 10447903 | Shim, Btm Hinge |
|
- | |||||
| 111 | A3076901 | Plug-button |
|
$ 5.70 | |||||
| 131 | 12039102 | Bracket, Rear Roller |
|
- | |||||
| 142 | 12045303 | Pan, Drain |
|
- | |||||
| 151 | WP67006715 | Screw (Replaces: M0233847) |
|
$ 7.55 | |||||
| 161 | 10093308 | Screw, Adj Roller |
|
- | |||||
| 171 | 10476101Q | Assy, Roller Brkt |
|
- | |||||
| 191 | W11573574 | Screw, Sm (Replaces: M0211031) |
|
Immediately | $ 14.72 | ||||
| 201 | 10987526 | Insulation, Right Foot |
|
- | |||||
| 211 | M0204336 | Screw, Adj Roller |
|
- | |||||
| 231 | 10987525 | Insulation, Left Foot |
|
- | |||||
| 271 | W11177593 | Brake, Foot (Replaces: 10354001) |
|
$ 12.18 | |||||
| 341 | 12038901 | Rail, Comp Supp |
|
- | |||||
| 442 | 12098203 | Assy, Mc Bot Cover |
|
- | |||||
| 451 | 12452601Q | Assy, Roller Bracket |
|
- | |||||
| 491 | WP22002933 | Screw, Sm (Replaces: M0211357) |
|
$ 8.06 | |||||
| 522 | M0227217 | Screw, Sm |
|
- | |||||
| 542 | B5759642 | Gasket |
|
- | |||||
| 612 | 12094004 | Brkt, Defrost Timer |
|
- | |||||
| 622 | M0216705 | Screw |
|
$ 5.81 | |||||
| 632 | WP489399 | Screw, Se (Replaces: M0232929) |
|
$ 7.30 | |||||
| 642 | A3189336 | Gasket, Foam |
|
- | |||||
| 652 | A3293505 | Bushing-snap |
|
- | |||||
| 662 | 10129307 | Kit, Defrost Timer (230 Vac) |
|
- | |||||
| 672 | 12167701 | Harness, Mach Comp |
|
- | |||||
| 682 | 12167102 | Encl, Def Timer |
|
- | |||||
| 813 | 10514801 | Bracket, Roller |
|
- | |||||
| 823 | M0286708 | Nut, Speed |
|
$ 47.85 | |||||
| 833 | WP10450603 | Roller (Replaces: 10450602) |
|
$ 8.27 | |||||
| 843 | M1205302 | Rivet |
|
$ 5.85 |
