SELECT A DIAGRAM

01 - Bottom Hinge, Roller, And Condenser Assy


02 - Cabinet Back And Compressor


03 - Cabinet Shelving


04 - Controls, Hinges, & Accessories


05 - Deli And Crisper Assy


06 - Door Assy


07 - Evaporator Assy


08 - Ice Maker Assy And Parts


09 - Ladders/light Assy

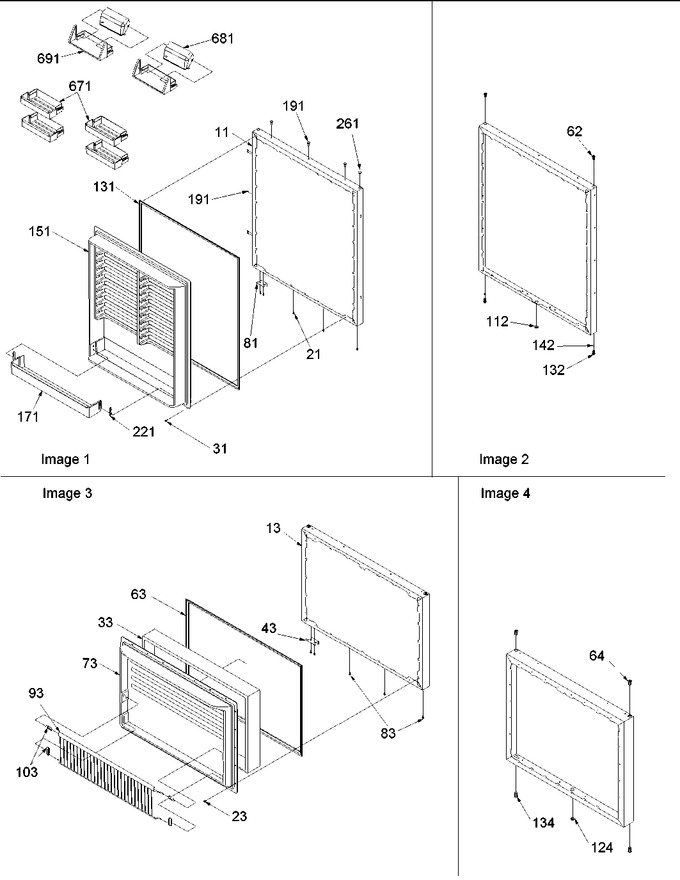

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12082503E		Ass`y, Ref Dr Fm(blk)		Appelez-nous	-
13	12081703E		Ass`y, Fz Dr Fm(blk)		Appelez-nous	-
21	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
23	M0219730		Screw				$ 7.65
31	M0219730		Screw				$ 7.65
33	876370		Insulation, Batt   (Replaces: B0523561)				$ 243.14
43	12051009		Stop, Door (blk)		Appelez-nous	-
62	10961002		Bushing, Door (blk)		Appelez-nous	-
63	WP12550107Q		Gasket,fz Dr(black)   (Replaces: 10456851)				$ 315.30
64	C8964402		Bushing, Top		Appelez-nous	-
73	12031501		Liner, Frz Door		Appelez-nous	-
81	W11708403		Stop, Door (blk)   (Replaces: 12051012)			Immediately	$ 14.75
83	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
93	12051601		Retainer, Package		Appelez-nous	-
103	12051501		Glide, Frz Dr Rack		Appelez-nous	-
112	M0310336		Plug, Button (blk)		Appelez-nous	-
124	M0310336		Plug, Button (blk)		Appelez-nous	-
131	10456850		Gasket,ref Dr(black)		Appelez-nous	-
132	12028602		Bushing, Door (blk)		Appelez-nous	-
134	12050104		Closure, Door (blk)		Appelez-nous	-
142	10252903		Filter, Bushing		Appelez-nous	-
151	12031401		Liner, Ref Door		Appelez-nous	-
171	10609805		Retainer, Ref Door		Appelez-nous	-
191	WP12246608		Plug, Top Hinge Button (blk)   (Replaces: M0310731)			Immediately	$ 8.15
221	10202001		Clip, Retainer		Appelez-nous	-
261	10686404		Plug, Button(black)		Appelez-nous	-
671	10420007		Shelf, Ref Door		Appelez-nous	-
681	12163301		Door, Dairy		Appelez-nous	-
691	12163202		Shelf, Dairy		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
