Diagram for 01 - Bottom Hinge, Roller, And Condenser Assy
01 - Bottom Hinge, Roller, And Condenser Assy

Diagram for 02 - Cabinet Back And Compressor
02 - Cabinet Back And Compressor

Diagram for 03 - Cabinet Shelving
03 - Cabinet Shelving

Diagram for 04 - Controls, Hinges, & Accessories
04 - Controls, Hinges, & Accessories

Diagram for 05 - Deli And Crisper Assy
05 - Deli And Crisper Assy

Diagram for 06 - Door Assy
06 - Door Assy

Diagram for 07 - Evaporator Assy
07 - Evaporator Assy

Diagram for 08 - Ice Maker Assy And Parts
08 - Ice Maker Assy And Parts

Diagram for 09 - Ladders/light Assy
09 - Ladders/light Assy


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
14 10423127 Bin, Egg Appelez-nous -
24 10436404 Lid, Utility Special Order $ 60.85

34 10448902 Rack, Wine Appelez-nous -
44 10436504 Tray, Egg Appelez-nous -
54 10310901 Tray, Butter Appelez-nous -
64 12103905 Snugger, Door Shelf Appelez-nous -
84 10468004 Retainer, Tall Pkg Appelez-nous -
94 10441102 Hugger, Bottle (shelf Divider) Appelez-nous -
111 WP12246608 Plug, Top Hinge Button (blk)   (Replaces: M0310731) In-Stock Immediately $ 8.15

121 12077304 Hinge, Top Appelez-nous -
141 B8345401 Gasket, Damper Appelez-nous -
151 10562201 Shim, Center Hinge Appelez-nous -
161 10562202 Shim, Center Hinge Appelez-nous -
171 10562203 Shim, Center Hinge Appelez-nous -
181 10351002 Pin, Hinge (ctr) Appelez-nous -
191 10561602 Pin, Door Hinge Appelez-nous -
201 C8902601 Insert, Control Appelez-nous -
211 12446504 Ctr Hinge Bk E Ct Appelez-nous -
231 D7795826 Knob, Control (wht) Appelez-nous -
261 R0161050 Damper Control Kit Special Order $ 120.41

312 12045103 Grille, Toe (blk) Appelez-nous -
321 12045401 Cover-ref Cont Appelez-nous -
322 10551502 Clip, Toe Grille Special Order $ 5.84

331 12060101 Insul, Damper Appelez-nous -
381 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

401 W11573362 Screw, T. F.   (Replaces: M0226233) Special Order $ 14.72

411 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

441 Y12060002 Shim-e Dr Closure Appelez-nous -
471 10451301 Shim, Top Hinge Special Order $ 1.08

481 10451302 Shim, Top Hinge Special Order $ 0.63

491 10451303 Shim, Top Hinge Special Order $ 1.08

511 12076301 Cover, Hinge (blk) Appelez-nous -
553 D7874403 Cover-fl Tb/plug Appelez-nous -
563 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

601 R9800670 Screw, Tf   (Replaces: M0238731) Special Order $ 10.58

611 WP8281227 Screw, Tc   (Replaces: M0220432) Special Order $ 10.96

631 10391302 Support, Pin Appelez-nous -
651 12113302 Closure, Door (blk) Appelez-nous -
802 M0216531 Screw Appelez-nous -
812 D7878825 Cover, Frz Cont Appelez-nous -
841 10493302 Cover, Frz Light Appelez-nous -
851 M0238846 Screw-sm Appelez-nous -
861 WP12246608 Plug, Top Hinge Button (blk)   (Replaces: M0310731) In-Stock Immediately $ 8.15

1131 WPM0104106 Clip   (Replaces: M0104106) Special Order $ 8.17

1151 M0311703 Plug, Button (blk) Appelez-nous -
1181 M0270538 Washer Appelez-nous -
1441 12028502 Closure, Door (blk) Appelez-nous -
1551 12056201 Shield, Ref Light Sw Appelez-nous -
1561 12056301 Cover, Ref Light Appelez-nous -
1601 WP22002933 Screw, Sm   (Replaces: M0211357) Special Order $ 8.06

1651 W11384469 Switch, Light   (Replaces: C3680310) In-Stock Immediately $ 39.09

1861 M0270508 Washer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

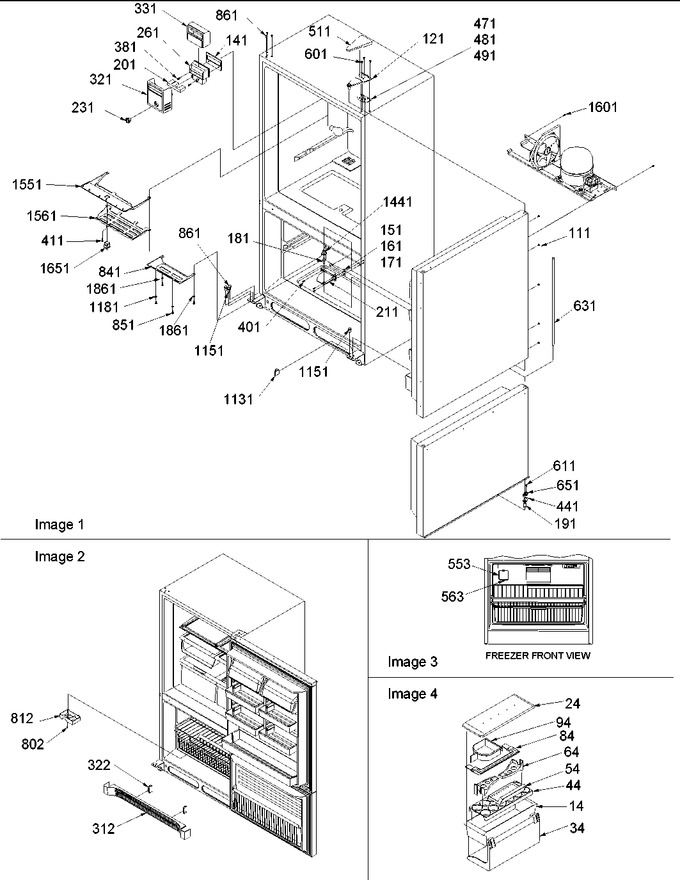

Diagram for BRF520T1E (BOM: P1321304W E)
