Diagram for 01 - Bottom Hinge, Roller, And Condenser Assy
01 - Bottom Hinge, Roller, And Condenser Assy

Diagram for 02 - Cabinet Back And Compressor
02 - Cabinet Back And Compressor

Diagram for 03 - Cabinet Shelving
03 - Cabinet Shelving

Diagram for 04 - Controls, Hinges, & Accessories
04 - Controls, Hinges, & Accessories

Diagram for 05 - Deli And Crisper Assy
05 - Deli And Crisper Assy

Diagram for 06 - Door Assy
06 - Door Assy

Diagram for 07 - Evaporator Assy
07 - Evaporator Assy

Diagram for 08 - Ice Maker Assy And Parts
08 - Ice Maker Assy And Parts

Diagram for 09 - Ladders/light Assy
09 - Ladders/light Assy


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
13 W10309997 Compressor (220/230 Vac 50hz)   (Replaces: Y10740301) Special Order $ 583.93

23 12051110 Shroud, Cond Fan-e Ct Appelez-nous -
33 A3030359 Gasket Appelez-nous -
63 B5742604 Blade, Fan Appelez-nous -
83 WPW10169124 Grommet, Compressor   (Replaces: 10835901) In-Stock Immediately $ 7.55

113 10899601 Overload/relay Appelez-nous -
153 10582501 Bracket, Cond. Motor Appelez-nous -
173 D7846901 Motor-condenser Appelez-nous -
223 WP90767 Screw, Sm   (Replaces: M0224416) In-Stock Immediately $ 8.25

243 M0223816 Screw, Tr Special Order $ 5.27

251 12443901 Assy,heat Ex Cover Appelez-nous -
263 12152903 Weld, Comp Frnt Appelez-nous -
303 M0221523 Screw, Shldr Appelez-nous -
333 W10848274 Capacitor   (Replaces: 10958301) Special Order $ 185.85

393 12459101 Assy, Power Cord Appelez-nous -
421 M0227217 Screw, Sm Appelez-nous -
661 12496402 Plate, Cover Appelez-nous -
671 12093802 Harness, Control Appelez-nous -
681 A1781111 Cap-rect Vinyl Appelez-nous -
691 12060601 Plug, Tunnel Appelez-nous -
741 10544301 Plug, Im Tunnel Appelez-nous -
881 67006425 Screw, Sm   (Replaces: M0238642) In-Stock Immediately $ 7.30

1022 WPB2150504 Drier   (Replaces: B2150504) Special Order $ 136.98

1032 M0102327 Clamp Appelez-nous -
1042 10547002 Clip, Drier Appelez-nous -
1131 WPM0104106 Clip   (Replaces: M0104106) Special Order $ 8.17

1192 WP489399 Screw, Ca   (Replaces: M0239216) Special Order $ 7.30

1432 WP489069 Screw   (Replaces: M0220617) In-Stock Immediately $ 8.40

1471 M0219704 Screw Appelez-nous -
1571 12180003 Assy, Mc Back Appelez-nous -
1581 12088401 Bracket, Water Valve Mtg Appelez-nous -
1832 10899701 Cover, Terminal Appelez-nous -
1902 10899501 Clamp, Term. Cover Appelez-nous -
1912 12192501 Clamp-cord Appelez-nous -
1922 12192601 Assy, Screw Clamp Appelez-nous -
1932 M0239015 Screw-mach Appelez-nous -
1942 M0239018 Screw, Machine Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

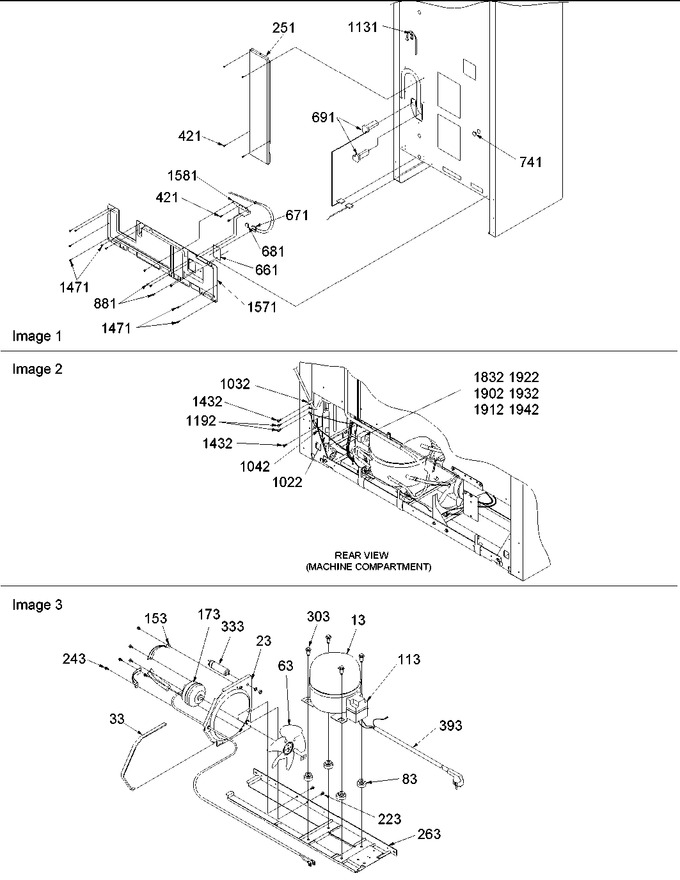

Diagram for BRF520T1E (BOM: P1321304W E)
