SELECT A DIAGRAM

01 - Bottom Hinge, Roller, And Condenser Assy


02 - Cabinet Back And Compressor


03 - Cabinet Shelving


04 - Controls, Hinges, & Accessories


05 - Deli And Crisper Assy


06 - Door Assy


07 - Evaporator Assy


08 - Ice Maker Assy And Parts

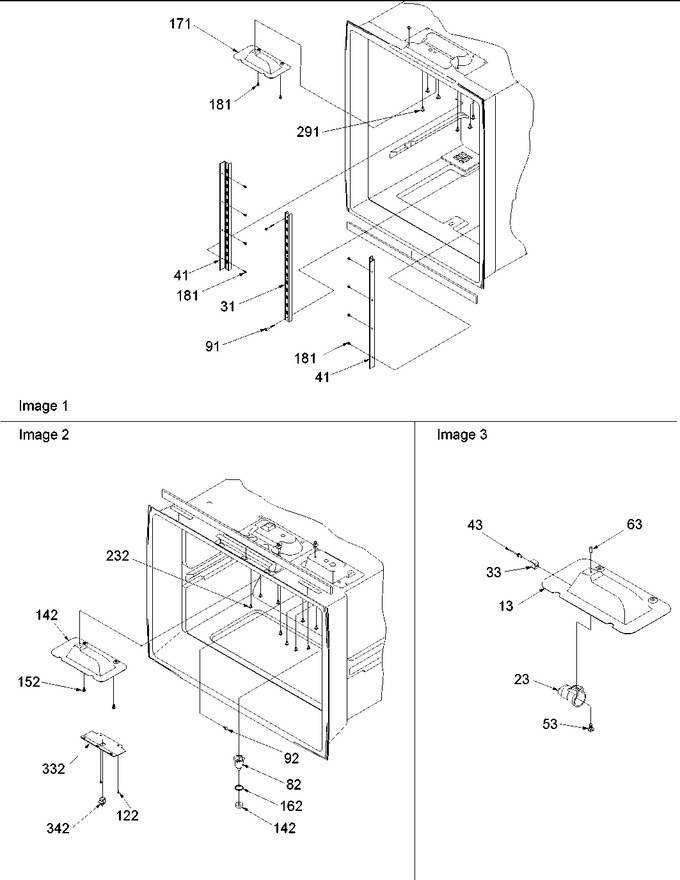

09 - Ladders/light Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	D7863904		Housing, Frz Light		Appelez-nous	-
23	D7845102		Socket, Lamp		Appelez-nous	-
31	12435801		Ladder, Center		Appelez-nous	-
33	M0320910		Term		Appelez-nous	-
41	12435701		Ladder, Side (l/r)		Appelez-nous	-
43	A4539626		Pop Rivet		Appelez-nous	-
53	M0213129		Screw		Appelez-nous	-
63	A1781112		Cap-vinyl Tube		Appelez-nous	-
82	W10815413		Funnel, Drain   (Replaces: D7753903)			Immediately	$ 51.50
91	M0231426		Screw		Appelez-nous	-
92	12991101		Screw, Sm   (Replaces: M0210816)				$ 13.47
122	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
132	WPB8381501		Gasket, Drain Tube   (Replaces: B8381501)				$ 7.78
142	12266401Q		Assy,fz Light		Appelez-nous	-
152	67006425		Screw, Sm   (Replaces: M0238642)			Immediately	$ 7.30
162	WPM0500703		Seal, O Ring   (Replaces: M0500703)				$ 11.47
171	12266401Q		Assy,fz Light		Appelez-nous	-
181	67006425		Screw, Sm   (Replaces: M0238642)			Immediately	$ 7.30
232	M0581001		Grommet, Screw		Appelez-nous	-
291	M0581001		Grommet, Screw		Appelez-nous	-
332	12056101		Cover, Frz Light Sw		Appelez-nous	-
342	W11384469		Switch, Light   (Replaces: C3680310)			Immediately	$ 39.09

    View Diagram in Separate Window       Print Part List
