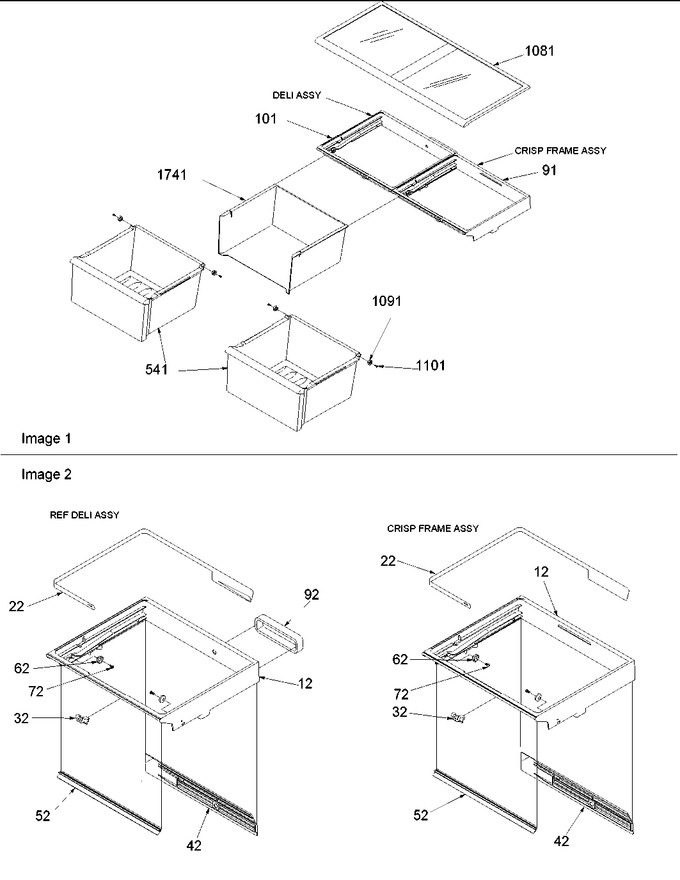

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	12031902		Frame, Crisper				$ 38.00
12	12031901		Frame, Ref Deli		Appelez-nous	-
22	12059501		Band, Ref Deli Cont		Appelez-nous	-
22	12059502		Band, Crisper Cont		Appelez-nous	-
32	12051201		Slide, Crisper/deli		Appelez-nous	-
42	12050801		Insert, Band Guide		Appelez-nous	-
52	10968802		Seal, Crisper Front		Appelez-nous	-
62	10481001		Roller, Pan				$ 10.99
72	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
91	12079906Q		Assy, Crisper Frame		Appelez-nous	-
92	12079801		Seal, Ref Deli		Appelez-nous	-
101	12079905Q		Assy, Ref Deli		Appelez-nous	-
541	12032001		Pan, Crisper		Appelez-nous	-
1081	12024902		Shelf, Top Crisper		Appelez-nous	-
1091	10481001		Roller, Pan				$ 10.99
1101	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
1741	12045201		Sleeve, Mk		Appelez-nous	-
