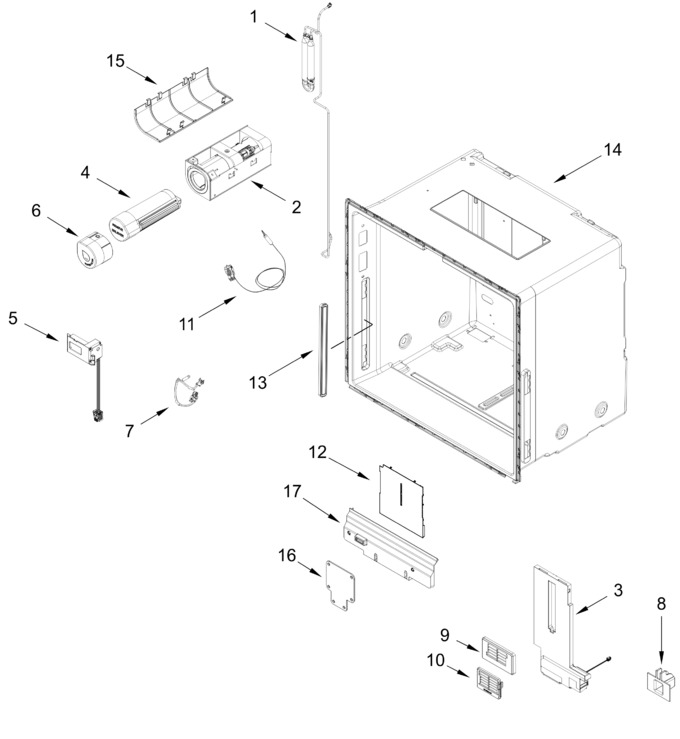

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11786864		Water Reservoir   (Replaces: W11556227)				$ 139.14
2	W11787800		Filter Housing Assembly   (Replaces: W11611400)		Appelez-nous	-
3	W11821473		Air Tower Assembly   (Replaces: W11547385)		Appelez-nous	-
4	EDRARXD1B		Water Filter   (Replaces: W11536439)			Immediately	$ 49.99
5	W11790525		Damper Assembly   (Replaces: W11512870)				$ 135.61
6	W11759994		Water Filter Housing Plug   (Replaces: W11669931)				$ 12.77
7	W11821730		Wire, Rc Jumper (includes Thermistor)   (Replaces: W11669756)		Appelez-nous	-
8	W11786920		Eps Holder   (Replaces: W11733721)		Appelez-nous	-
9	W11786940		Air Return Duct Grille   (Replaces: W11608374)		Appelez-nous	-
10	W11787802		Air Return Grille   (Replaces: W11615361)		Appelez-nous	-
11	W11787118		Wire Jumper Assembly   (Replaces: W11669736)		Appelez-nous	-
12	W11821475		False Wall, Rc (white)   (Replaces: W11608392)		Appelez-nous	-
13	W11821471		Light Strip   (Replaces: W11549349)		Appelez-nous	-
14	ARI1BA464D72C84DA7297AB1B09D16F5BB3		Liner (not A Serviceable Part)		Appelez-nous	-
15	W11759993		Water Filter Housing Cover (lower)   (Replaces: W11611401)				$ 81.11
16	W11787791		Port Lid Assembly   (Replaces: W11724694)		Appelez-nous	-
17	W11821474		False Wall, Lower (white)   (Replaces: W11608398)		Appelez-nous	-
