SELECT A DIAGRAM

Cabinet Parts


Dispenser Front Parts


Freezer Door Parts


Freezer Liner Parts


Icemaker And Ice Container Parts


Optional Parts


Refrigerator Door Parts


Refrigerator Liner Parts


Shelf Parts


Unit Parts

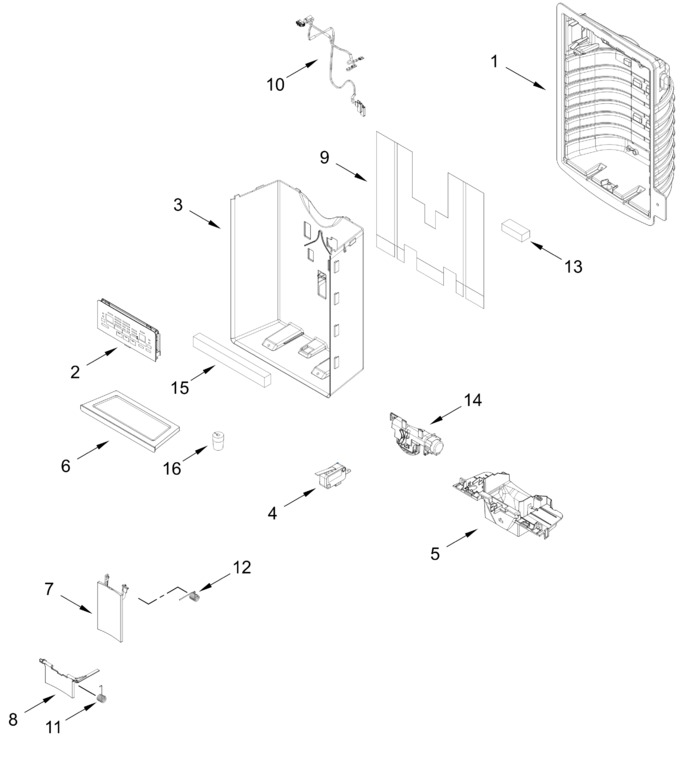

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI7BA56BA2C1ECE25D7D2B23E3FB9AE19C		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W11821584		Ui Assembly   (Replaces: W11606792)		Appelez-nous	-
3	W11818598		False Wall (black)   (Replaces: W11623959)		Appelez-nous	-
4	W11787550		Microswitch Tray   (Replaces: W11577793)		Appelez-nous	-
5	W11826984		Separator, Dispenser   (Replaces: W11579851)		Appelez-nous	-
6	W11798504		Drip Tray (black)   (Replaces: W11599252)		Appelez-nous	-
7	W11826985		Ice Dispenser Pad (black Ore)   (Replaces: W11595616)		Appelez-nous	-
8	W11826986		Dispenser Water Pad (black Ore)   (Replaces: W11595619)		Appelez-nous	-
9	W11787775		Dispenser Tray   (Replaces: W11592235)		Appelez-nous	-
10	W11787551		Paddle Wire Assembly   (Replaces: W11577046)		Appelez-nous	-
11	W11778261		Torsion Spring   (Replaces: W10672578)			Immediately	$ 18.00
12	W11109505		Torsion Spring (dispenser Pad)   (Replaces: W10663682)			Immediately	$ 26.03
13	W11818600		Foam Gasket   (Replaces: W11745627)		Appelez-nous	-
14	W11787766		Bracket Assembly   (Replaces: W11578036)		Appelez-nous	-
15	W11743056		Sound Insulation		Appelez-nous	-
16	W11807693		Dispenser Tube Seal   (Replaces: W11728424)		Appelez-nous	-
